GIVL1216-1SS
SKU
THC04742
Product Overview
GIV
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 02.20 |
| [CW MAX] Edge Tolerance | 1.00 |
| [DCON] Connection Diameter | 16.00 |
| [LH] Head Length | 20.00 |
| [WF] Cutting Edge Distance | 06.00 |
| [DMIN] Minimum Bore Diameter | 12.00 |
| [LF] Functional Length | 150.00 |
| [H] Shank Height | 15.00 |
| [CW] Cutting Width | 1.00 |

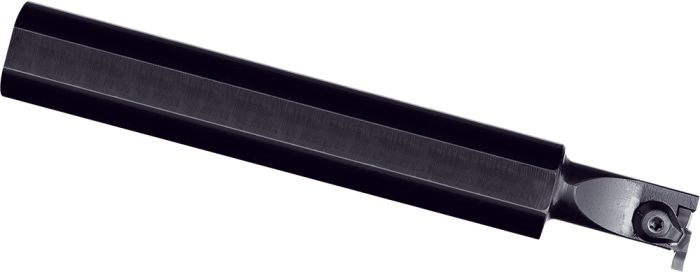

Internal Grooving Toolholder
| Weight | 0.231000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 02.20 |
| Coolant supply property | No |
| Grooving | Internally Grooving, Internally Grooving/ Turning |
| Tool Style | GIV |
| Cutting Width Minimum | 1.00 |
| Cutting Width Maximum | 1.00 |
| Insert Mounting Style Code | Top Clamp |
| Brand | Kyocera |
| Shank Height | 15.00 |
| Cutting Width | 1.00 |
