GIVL4032-1C
SKU
THC04900
Product Overview
GIV
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 05.50 |
| [CW MAX] Edge Tolerance | 2.80 |
| [DCON] Connection Diameter | 32.00 |
| [LH] Head Length | 43.00 |
| [WF] Cutting Edge Distance | 21.00 |
| [DMIN] Minimum Bore Diameter | 40.00 |
| [LF] Functional Length | 250.00 |
| [H] Shank Height | 30.00 |
| [CW] Cutting Width | 2.80 |

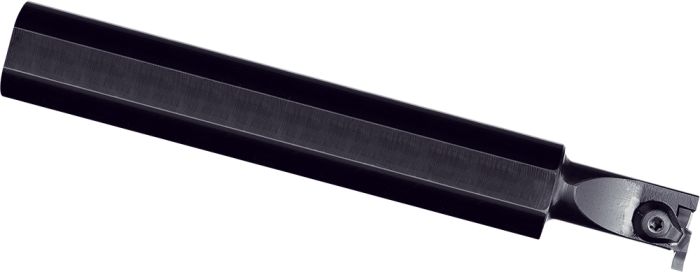

Internal Grooving Toolholder
| Weight | 1.456000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 05.50 |
| Coolant supply property | No |
| Grooving | Internally Grooving, Internally Grooving/ Turning |
| Tool Style | GIV |
| Cutting Width Minimum | 2.80 |
| Cutting Width Maximum | 2.80 |
| Insert Mounting Style Code | Top Clamp |
| Brand | Kyocera |
| Shank Height | 30.00 |
| Cutting Width | 2.80 |
