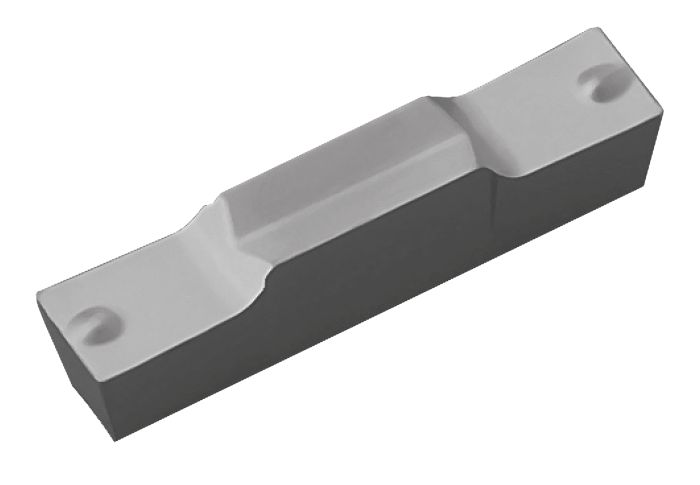

GMG4020-020MS TN90
SKU
TSO12051
Product Overview
GMG
Stainless Steel
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [S] Insert Thickness | 4.30 |
| [CDX] Max Depth of Cut | 25.00 |
| [INSL] Insert length | 20.00 |
| [CW] Cutting Width | 4.00 |
Grooving Insert Cermet
| Weight | 0.005000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | TN90 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 25.00 |
| Tool Material | Cermet |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GMG |
| Cutting Width Tolerance | -0_02/+0_02 |
| Cutting Width Minimum | 4.00 |
| Cutting Width Maximum | 4.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Cutting Edge Style | Sharp Cutting Oriented, Precision Class |
| Usage Classification | Continuous |
| Insert length | 20.00 |
| Cutting Width | 4.00 |
| Insert Size | GMG-4020 |
| Chip Breaker Manufacturers Designation | MS |
