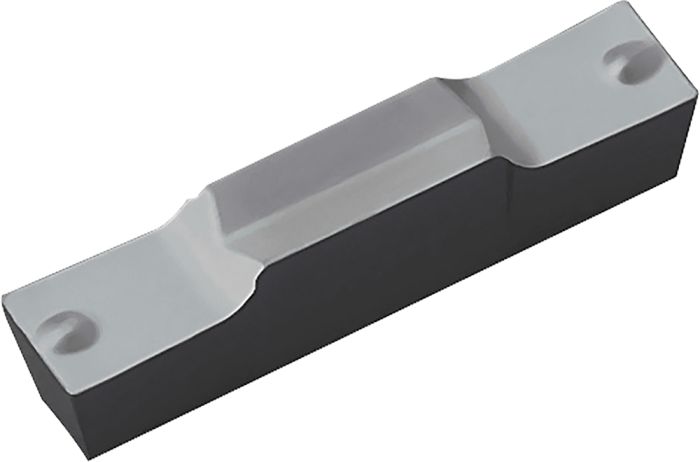

GMG6020-080MS KW10
SKU
TWE12153
Product Overview
GMG
Non-Ferro
Regular Grain Carbide
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.80 |
| [S] Insert Thickness | 4.30 |
| [CDX] Max Depth of Cut | 30.00 |
| [INSL] Insert length | 20.00 |
| [CW] Cutting Width | 6.00 |
Grooving Insert Carbide
| Weight | 0.008000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KW10 |
| Primary Workpiece Material | Non-Ferro |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 30.00 |
| Tool Material | Regular Grain Carbide |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GMG |
| Cutting Width Tolerance | -0_02/+0_02 |
| Cutting Width Minimum | 6.00 |
| Cutting Width Maximum | 6.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Cutting Edge Style | Sharp Cutting Oriented, Precision Class |
| Usage Classification | Continuous to Light Interruption |
| Insert length | 20.00 |
| Cutting Width | 6.00 |
| Insert Size | GMG-6020 |
| Chip Breaker Manufacturers Designation | MS |
