GMG8030-050MG TN90
SKU
TSO12433
Product Overview
GMG
Stainless Steel
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.50 |
| [S] Insert Thickness | 5.50 |
| [CDX] Max Depth of Cut | 25.00 |
| [INSL] Insert length | 30.00 |
| [CW] Cutting Width | 8.00 |

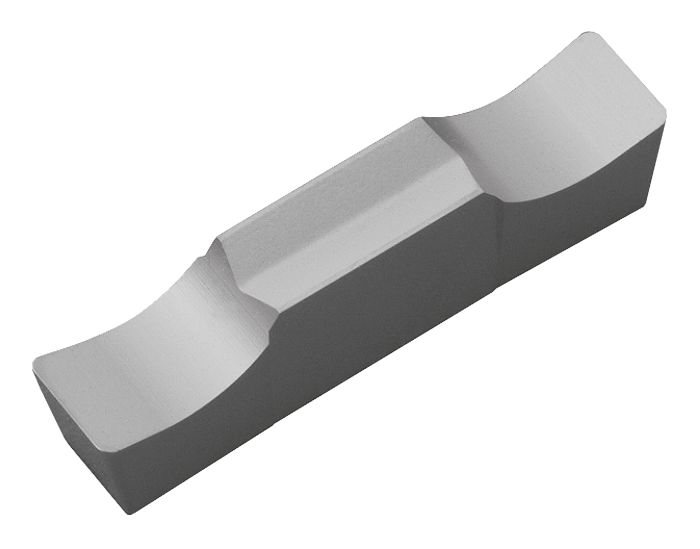

Grooving Insert Cermet
| Weight | 0.007000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | TN90 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 25.00 |
| Tool Material | Cermet |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GMG |
| Cutting Width Tolerance | -0_03/+0_03 |
| Cutting Width Minimum | 8.00 |
| Cutting Width Maximum | 8.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Cutting Edge Style | Sharp-Cutting Oriented / Precision Class, Ground Chipbreaker |
| Usage Classification | Continuous |
| Insert length | 30.00 |
| Cutting Width | 8.00 |
| Insert Size | GMG-8030 |
| Chip Breaker Manufacturers Designation | MG |
