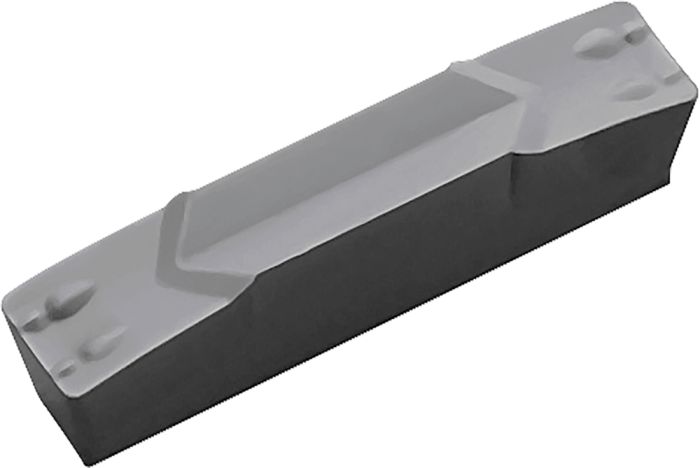

GMM8030-080MW KW10
SKU
TWE12855
Product Overview
GMM
Non-Ferro
Regular Grain Carbide
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.80 |
| [S] Insert Thickness | 5.50 |
| [CDX] Max Depth of Cut | 25.00 |
| [INSL] Insert length | 30.00 |
| [CW] Cutting Width | 8.00 |
Grooving Insert Carbide
| Weight | 0.017000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KW10 |
| Primary Workpiece Material | Non-Ferro |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 25.00 |
| Tool Material | Regular Grain Carbide |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GMM |
| Cutting Width Tolerance | -0_05/+0_05 |
| Cutting Width Minimum | 8.00 |
| Cutting Width Maximum | 8.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Cutting Edge Style | Chip Control Oriented / M-Class |
| Usage Classification | Continuous to Light Interruption |
| Insert length | 30.00 |
| Cutting Width | 8.00 |
| Insert Size | GMM-8030 |
| Chip Breaker Manufacturers Designation | MW |
