GMN2 KBN510
SKU
TBV12495
Product Overview
GMN
Hardened Material
Cubic Boron Nitride
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [S] Insert Thickness | 4.30 |
| [CDX] Max Depth of Cut | 17.00 |
| [RE] Corner Radius | 0.4 |
| [LE] CBN/PCD Tip Length | 2.90 |
| [INSL] Insert length | 20.00 |
| [CW] Cutting Width | 2.00 |

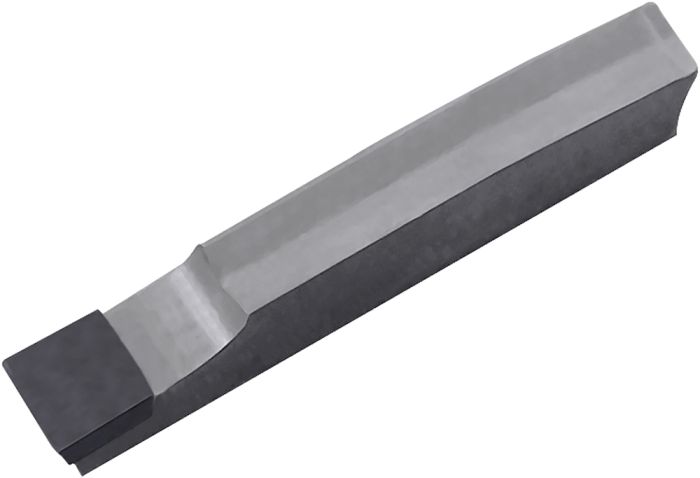

Grooving Insert CBN
| Weight | 0.002000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KBN510 |
| Primary Workpiece Material | Hardened Material |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 17.00 |
| Tool Material | Cubic Boron Nitride |
| Application Category | External Grooving, External Deep Grooving |
| CBN/PCD Tip Length | 2.90 |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 1 |
| Tool Style | GMN |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Insert length | 20.00 |
| Cutting Width | 2.00 |
