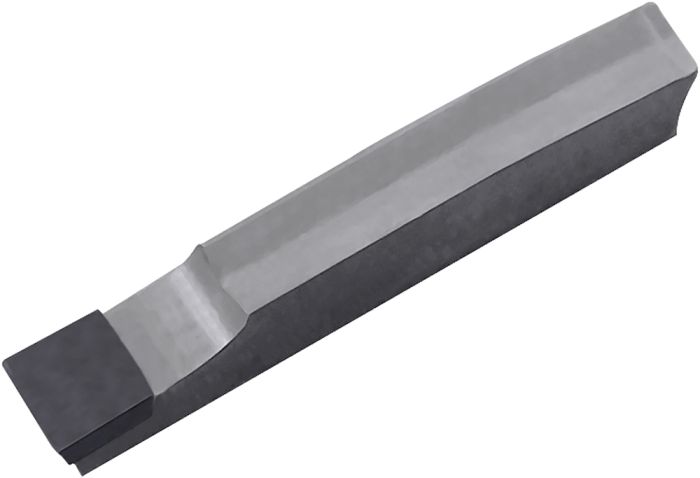

GMN4 KPD001
SKU
TBR12600
Product Overview
GMN
Heat Resistant Materials
Non-Ferro
Poly-chrystaline Diamond
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [S] Insert Thickness | 4.30 |
| [CDX] Max Depth of Cut | 25.00 |
| [LE] CBN/PCD Tip Length | 2.90 |
| [INSL] Insert length | 20.00 |
| [CW] Cutting Width | 4.00 |
Grooving Insert PCD
| Weight | 0.005000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KPD001 |
| Primary Workpiece Material | Non-Ferro, Heat Resistant Materials |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 25.00 |
| Tool Material | Poly-chrystaline Diamond |
| Application Category | External Grooving, External Deep Grooving |
| CBN/PCD Tip Length | 2.90 |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 1 |
| Tool Style | GMN |
| Cutting Width Tolerance | +0_05/-0_05 |
| Cutting Width Minimum | 4_00 |
| Cutting Width Maximum | 4_00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Cutting Edge Style | 1-Edge |
| Usage Classification | Continuous |
| Insert length | 20.00 |
| Cutting Range | Finishing |
| Cutting Width | 4.00 |
| Insert Size | GMN-4 |
