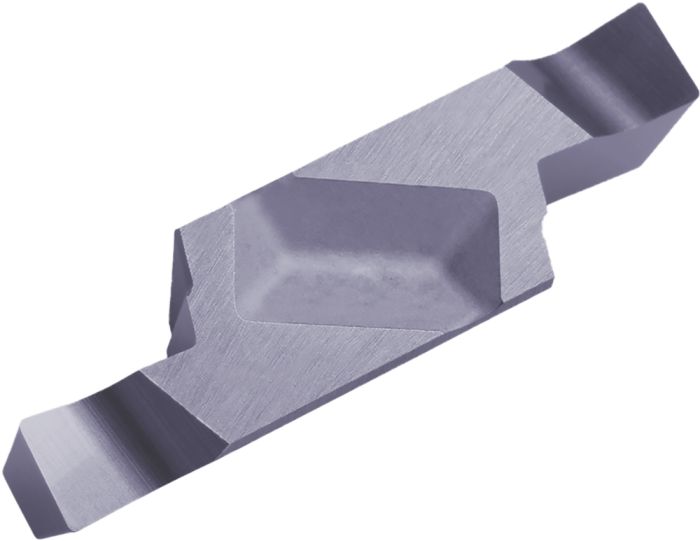

GVFR400-040C PR1225
SKU
TKE15848
Product Overview
GVF
Stainless Steel
Steel
Micro Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.40 |
| [S] Insert Thickness | 7.00 |
| [CDX] Max Depth of Cut | 06.80 |
| [INSL] Insert length | 27.00 |
| [CW] Cutting Width | 4.00 |
| [W1] Insert Width | 7.00 |
Insert for Face Grooving
| Weight | 0.011000 |
|---|---|
| Application | Grooving |
| Coating | PVD |
| Grade Manufacturers Designation | PR1225 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 06.80 |
| Tool Material | Micro Grain Carbide |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GVF |
| Cutting Width Tolerance | -0_03/+0_03 |
| Cutting Width Minimum | 4.00 |
| Cutting Width Maximum | 4.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT |
| Cutting Edge Style | 2-edge |
| Usage Classification | Continuous |
| Insert length | 27.00 |
| Cutting Width | 4.00 |
| Insert Size | GVFR-C |
| Insert Width | 7.00 |
| Chip Breaker Manufacturers Designation | C |
