HSK-A80-8-85
SKU
608021-02
Product Overview
HSK-A80
HSK
Face Miling
Price Hidden
In stock
| Specifications | |
|---|---|
| [L] Cutting edge length | 37 |
| [D1] Diameter | 8 |
| [D2] Cutting Diameter Minimum | 21 |
| [D2] [D2] Diameter | 21 |
| [D3] [D3] Diameter | 27 |
| [M] Metric Size | M6 |
| [A] A | 85 |

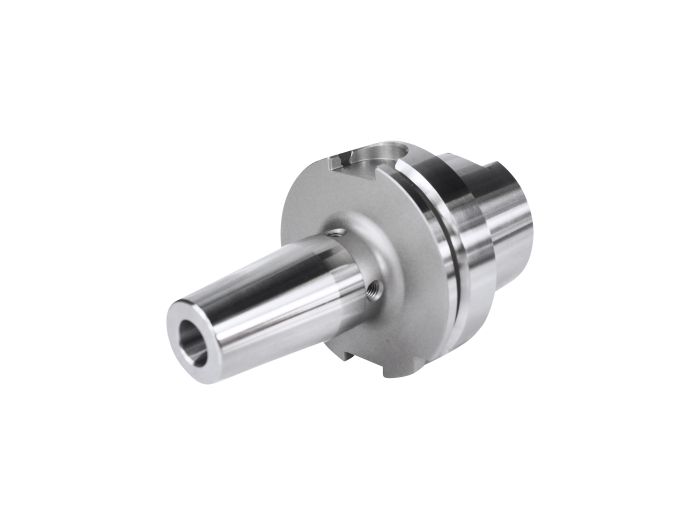

Shrink fit holder 4.5°
Detail 1 Application
For clamping tools with cylindrical shank of solid carbide or HSS, tol. h6.
Detail 2 Technical Design
Made of special heat resistant steel. Suitable for inductive shrinking unit. With four additional threads for supplementary fine balancing. Runout of outer taper to D1 < 0,003 mm.
| Weight | 1.350000 |
|---|---|
| Application | Milling |
| Clamping System | Shrink fit holder 4.5° |
| Diameter | 8 |
| Cutting Diameter Minimum | 21 |
| D3 | 27 |
| [D1] Diameter | 8 |
| [D2] Diameter | 21 |
| [D3] Diameter | 27 |
| Shank Size | HSK-A 80 |
| Type Accessories | HSK-A 80 |
| [V] | 10 |
| Version | Short |
| Connection Code | HSK |
| Type of Taper | Hollow Shank Taper DIN 69893 |
| Coolant supply property | No |
| Grooving | Parting off |
| Brand | Schussler |
| Attribute set | Spindle Tooling |
