HSK-A80-ER25-100
SKU
608002-02
Product Overview
HSK-A80
HSK
Face Miling
Price Hidden
In stock
| Specifications | |
|---|---|
| [L] Cutting edge length | 68 |
| [ER] ER | 25 |
| [M] Metric Size | M18x1,5 |
| [A] A | 100 |

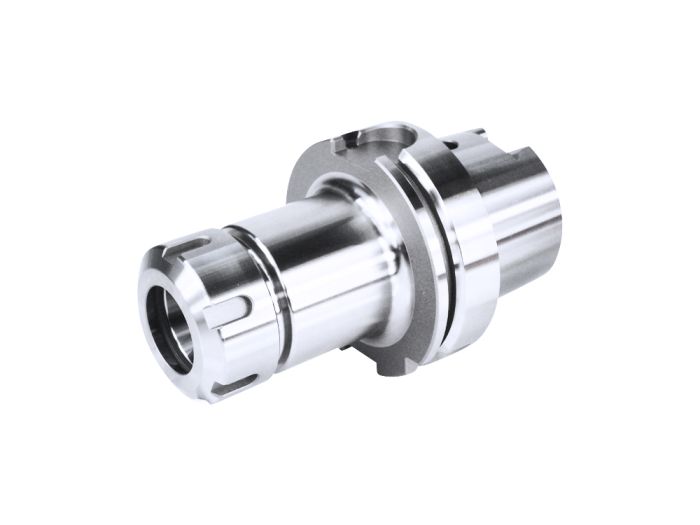

Collet chuck ER
Detail 1 Application
For clamping tools with cylindrical shank in collets ER.
Detail 2 Technical Design
Runout of outer taper to inner taper < 0,003 mm. Due to adjusted taper tolerances of the ER-Inner taper and the collet taper max. runout of < 8 µ at 2,5 X D.
| Weight | 1.770000 |
|---|---|
| Application | Milling |
| Clamping System | Collet chuck ER |
| ER (Size) | 25 |
| Shank Size | HSK-A 80 |
| Type Accessories | HSK-A 80 |
| Version | Short |
| Connection Code | HSK |
| Type of Taper | Hollow Shank Taper DIN 69893 |
| Coolant supply property | No |
| Grooving | Parting off |
| Brand | Schussler |
| Attribute set | Spindle Tooling |
Currently Holders Selection Are Not Available Please Visit Back Later.
