KGBAL2525K22-15JCT
SKU
THC14874
Product Overview
KGBA
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 04.00 |
| [CW MAX] Edge Tolerance | 3 |
| [B] Shank Width | 25.00 |
| [HF] Cutting Edge Height | 25.00 |
| [LH] Head Length | 26.50 |
| [WF] Cutting Edge Distance | 30.00 |
| [MHD] Mounting Hole Distance | 105.00 |
| [LF] Functional Length | 125.00 |
| [H] Shank Height | 25.00 |
| [CW] Cutting Width | 0.33 - 3.00 |

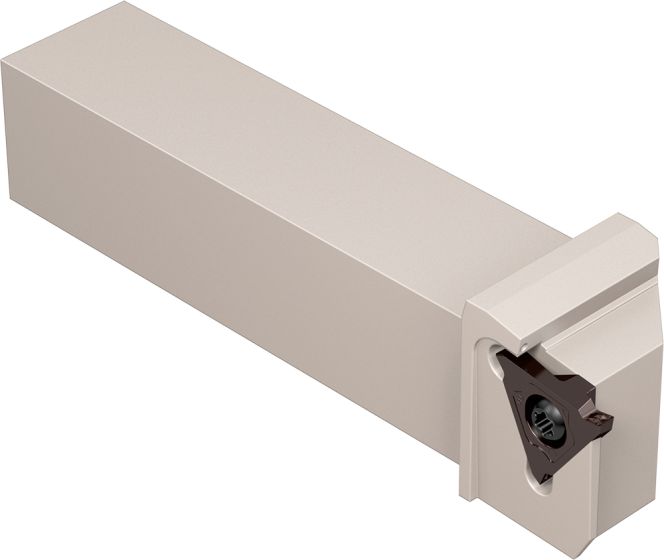

Coolant-Through External Grooving Toolholder
| Weight | 0.586000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 04.00 |
| Coolant supply property | No |
| Grooving | External Grooving |
| Mounting Hole Distance | 105.00 |
| Tool Style | KGBA |
| Cutting Width Minimum | 0.33 |
| Cutting Width Maximum | 3.00 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Shank Height | 25.00 |
| Cutting Width | 0.33 - 3.00 |
