KGBAR2020H22-25
SKU
THC08219
Product Overview
KGBAS
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 04.50 |
| [CW MAX] Edge Tolerance | 3 |
| [HF] Cutting Edge Height | 20.00 |
| [LH] Head Length | 25.50 |
| [WF] Cutting Edge Distance | 25.00 |
| [LF] Functional Length | 100.00 |
| [H] Shank Height | 20.00 |
| [CW] Cutting Width | 0.50 - 3.00 |

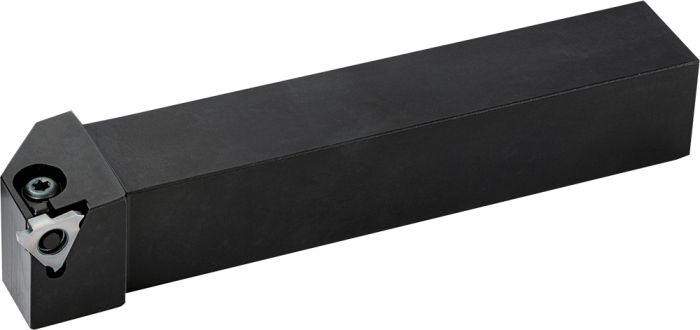

External Grooving Toolholder
| Weight | 0.315000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 04.50 |
| Coolant supply property | No |
| Grooving | External Grooving |
| Tool Style | KGBAS |
| Cutting Width Minimum | 0.50 |
| Cutting Width Maximum | 3.00 |
| Insert Mounting Style Code | Lever Lock / Lock Pin |
| Brand | Kyocera |
| Shank Height | 20.00 |
| Cutting Width | 0.50 - 3.00 |
