KGBASR2020K22-25T5
SKU
THC08210
Product Overview
KGBAS
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 05.50 |
| [CW MAX] Edge Tolerance | 3.30 |
| [B] Shank Width | 20.00 |
| [HF] Cutting Edge Height | 20.00 |
| [LH] Head Length | 25.00 |
| [WF] Cutting Edge Distance | 25.00 |
| [LF] Functional Length | 125.00 |
| [H] Shank Height | 20.00 |
| [CW] Cutting Width | 2.39 - 3.30 |

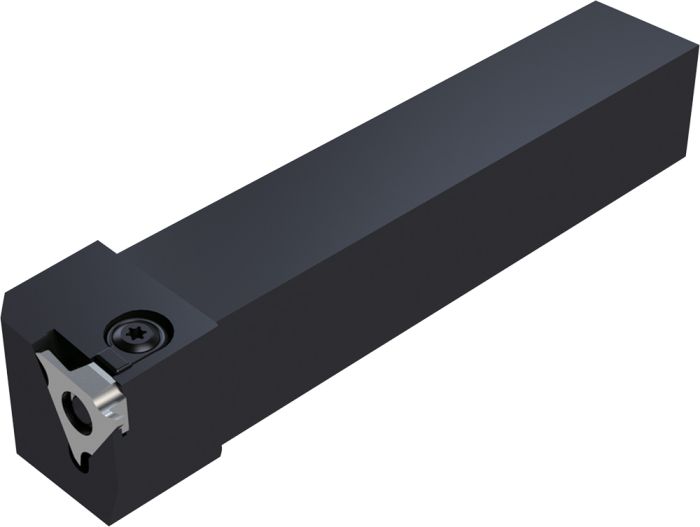

External Grooving Toolholder
| Weight | 0.431000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 05.50 |
| Coolant supply property | No |
| Grooving | External Grooving |
| Tool Style | KGBAS |
| Cutting Width Minimum | 2.39 |
| Cutting Width Maximum | 3.30 |
| Insert Mounting Style Code | Lever Lock / Lock Pin |
| Brand | Kyocera |
| Shank Height | 20.00 |
| Cutting Width | 2.39 - 3.30 |
