KGBFR1010JX-16F
SKU
THC14593
Product Overview
KGBF-F
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 03.00 |
| [CW MAX] Edge Tolerance | 3 |
| [B] Shank Width | 10.00 |
| [HF] Cutting Edge Height | 10.00 |
| [LH] Head Length | 18.50 |
| [WF] Cutting Edge Distance | 10.00 |
| [HBH] Head Bottom Offset Height | 4.00 |
| [LF] Functional Length | 120.00 |
| [H] Shank Height | 10.00 |
| [CW] Cutting Width | 0.25 - 3.00 |

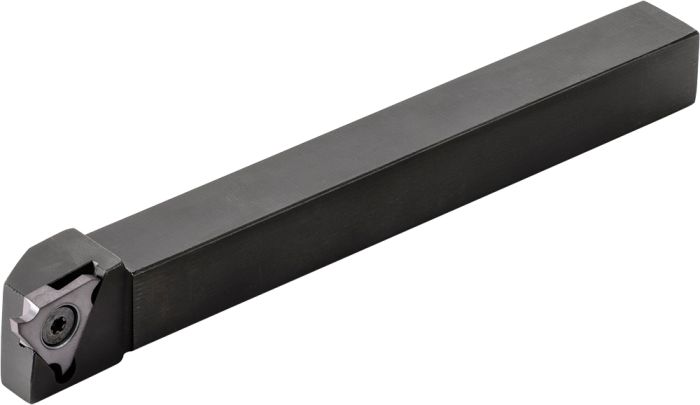

External Grooving Toolholder
| Weight | 0.097000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 03.00 |
| Coolant supply property | No |
| Grooving | External Grooving |
| Head Bottom Offset Height | 4.00 |
| Tool Style | KGBF-F |
| Cutting Width Minimum | 0.25 |
| Cutting Width Maximum | 3.00 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Shank Height | 10.00 |
| Cutting Width | 0.25 - 3.00 |
Currently Holders Selection Are Not Available Please Visit Back Later.
