KGBFR1212JX-16F
SKU
THC14595
Product Overview
KGBF-F
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 03.00 |
| [CW MAX] Edge Tolerance | 2.50 |
| [B] Shank Width | 12.00 |
| [HF] Cutting Edge Height | 12.00 |
| [LH] Head Length | 18.50 |
| [WF] Cutting Edge Distance | 12.00 |
| [HBH] Head Bottom Offset Height | 2.00 |
| [LF] Functional Length | 120.00 |
| [H] Shank Height | 12.00 |
| [CW] Cutting Width | 0.33 - 2.50 |

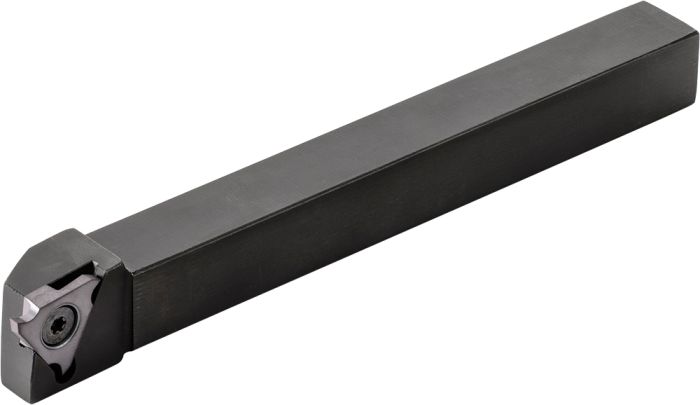

External Grooving Toolholder
| Weight | 0.133000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 03.00 |
| Coolant supply property | No |
| Grooving | External Grooving |
| Head Bottom Offset Height | 2.00 |
| Tool Style | KGBF-F |
| Cutting Width Minimum | 0.33 |
| Cutting Width Maximum | 2.50 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Shank Height | 12.00 |
| Cutting Width | 0.33 - 2.50 |
