KGDFR-70-4B-C
SKU
THT04520
Product Overview
KGDF
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 15.00 |
| [CW MAX] Edge Tolerance | 4 |
| [A] Insert Seat Width | 3.00 |
| [DAXN_min] Minimum Face Groove Diameter | 70.00 |
| [DAXX_max] Maximum Face Groove Diameter | 100.00 |
| [INSL] Insert length | 49.35 |
| [CW] Cutting Width | 4.00 |

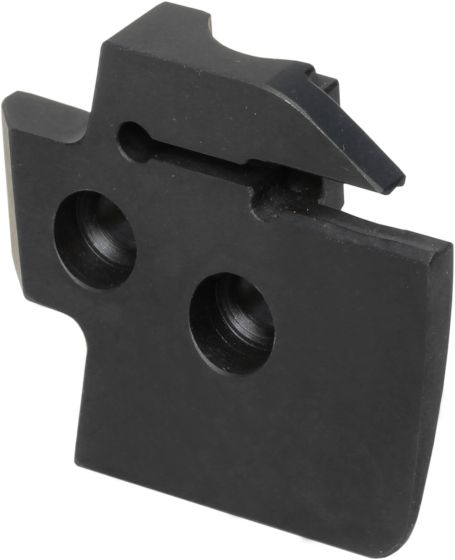

Face Grooving Blade
| Weight | 0.084000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 15.00 |
| Insert Seat Width | 3.00 |
| Coolant supply property | No |
| Minimum Face Groove Diameter | 70.00 |
| Maximum Face Groove Diameter | 100.00 |
| Grooving | Externally Axial Grooving, Externally Axial Grooving/ Turning |
| Tool Style | KGDF |
| Type of Operation | G24 |
| Cutting Width Minimum | 4.00 |
| Cutting Width Maximum | 4.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Insert length | 49.35 |
| Cutting Width | 4.00 |
