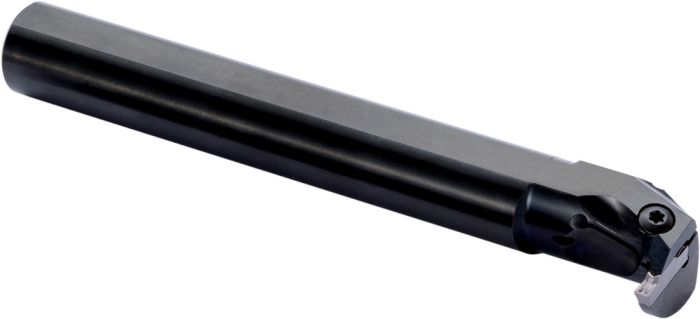

KGDIL1816B-2
SKU
THC14530
Product Overview
KGDI
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 04.50 |
| [CW MAX] Edge Tolerance | 2 |
| [DCON] Connection Diameter | 16.00 |
| [LH] Head Length | 25.00 |
| [WF] Cutting Edge Distance | 09.50 |
| [DMIN] Minimum Bore Diameter | 18.00 |
| [LF] Functional Length | 150.00 |
| [H] Shank Height | 15.00 |
| [CW] Cutting Width | 2.00 |
Internal Grooving
| Weight | 0.194000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 04.50 |
| Coolant supply property | No |
| Grooving | Internally Profiling, Internally Grooving, Internally Grooving/ Turning |
| Tool Style | KGDI |
| Type of Operation | G12 |
| Cutting Width Minimum | 2.00 |
| Cutting Width Maximum | 2.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Shank Height | 15.00 |
| Cutting Width | 2.00 |
Currently Holders Selection Are Not Available Please Visit Back Later.
