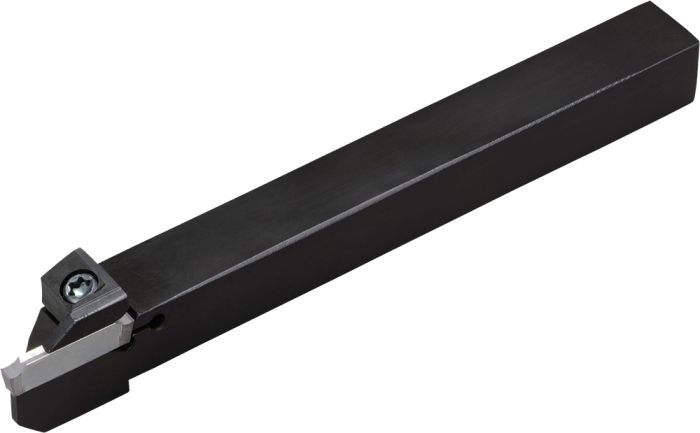

KGDR1010JX-1.5D16
SKU
THT05394
Product Overview
KGD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CW MAX] Edge Tolerance | 1.5 |
| [B] Shank Width | 10.00 |
| [HF] Cutting Edge Height | 12.00 |
| [LH] Head Length | 18.00 |
| [WF] Cutting Edge Distance | 09.70 |
| [CUTDIA] Maximum Cut-Off Diameter | 16.00 |
| [HBH] Head Bottom Offset Height | 2.00 |
| [LF] Functional Length | 120.00 |
| [H] Shank Height | 10.00 |
| [CW] Cutting Width | 1.50 |
Cut-Off, External Grooving, Small Parts Machining
| Weight | 0.094000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Coolant supply property | No |
| Maximum Cut-Off Diameter | 16.00 |
| Rake Angle Axial (Degree) | 5 |
| Grooving | External Grooving, External Grooving/ Turning, Parting off |
| Head Bottom Offset Height | 2.00 |
| Tool Style | KGD |
| Type of Operation | G03 |
| Cutting Width Minimum | 1.50 |
| Cutting Width Maximum | 1.50 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Shank Height | 10.00 |
| Cutting Width | 1.50 |
