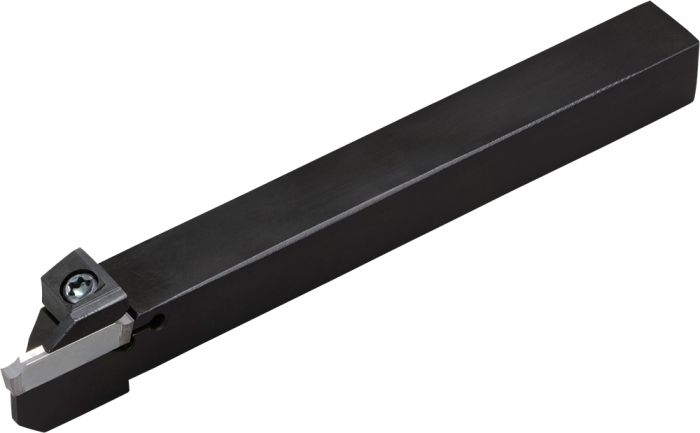

KGDR1216JX-4T06
SKU
THT05402
Product Overview
KGD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 06.00 |
| [CW MAX] Edge Tolerance | 4 |
| [B] Shank Width | 16.00 |
| [HF] Cutting Edge Height | 12.00 |
| [LH] Head Length | 19.50 |
| [WF] Cutting Edge Distance | 14.80 |
| [HBH] Head Bottom Offset Height | 2.00 |
| [LF] Functional Length | 120.00 |
| [H] Shank Height | 12.00 |
| [CW] Cutting Width | 3.00 - 4.00 |
Cut-Off, External Grooving, Small Parts Machining
| Weight | 0.175000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 06.00 |
| Coolant supply property | No |
| Grooving | External Grooving, External Grooving/ Turning, Parting off |
| Head Bottom Offset Height | 2.00 |
| Tool Style | KGD |
| Type of Operation | G03 |
| Cutting Width Minimum | 3.00 |
| Cutting Width Maximum | 4.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Shank Height | 12.00 |
| Cutting Width | 3.00 - 4.00 |
