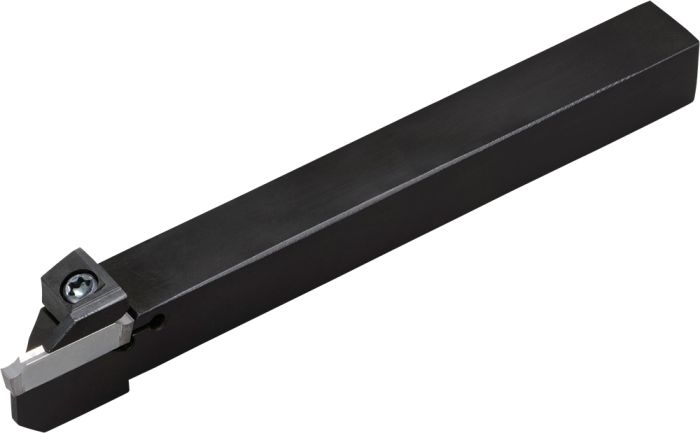

KGDR1913K-3D38
SKU
THT05366
Product Overview
KGD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CW MAX] Edge Tolerance | 4 |
| [B] Shank Width | 13.00 |
| [LH] Head Length | 29.00 |
| [WF] Cutting Edge Distance | 11.80 |
| [CUTDIA] Maximum Cut-Off Diameter | 38.00 |
| [HBH] Head Bottom Offset Height | - |
| [LF] Functional Length | 125.00 |
| [H] Shank Height | 19.00 |
| [CW] Cutting Width | 3.00 - 4.00 |
Cut-Off, External Grooving, Small Parts Machining
| Weight | 0.217000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Coolant supply property | No |
| Maximum Cut-Off Diameter | 38.00 |
| Grooving | External Grooving, External Grooving/ Turning, Parting off |
| Head Bottom Offset Height | - |
| Tool Style | KGD |
| Type of Operation | G03 |
| Cutting Width Minimum | 3.00 |
| Cutting Width Maximum | 4.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Shank Height | 19.00 |
| Cutting Width | 3.00 - 4.00 |
