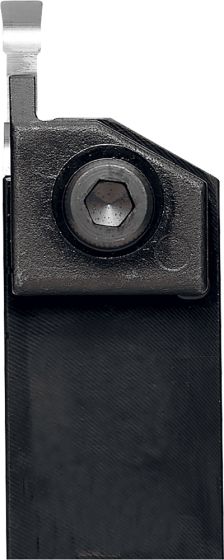

KGHR2020K-4
SKU
THC04568
Product Overview
KGH
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 13.00 |
| [CW MAX] Edge Tolerance | 4.50 |
| [B] Shank Width | 20.00 |
| [HF] Cutting Edge Height | 20.00 |
| [LH] Head Length | 33.50 |
| [WF] Cutting Edge Distance | 24.50 - 24.80 |
| [HBH] Head Bottom Offset Height | 5.00 |
| [LF] Functional Length | 125.00 |
| [H] Shank Height | 20.00 |
| [CW] Cutting Width | 4.00 - 4.50 |
External Grooving Toolholder
| Weight | 0.460000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 13.00 |
| Coolant supply property | No |
| Grooving | External Grooving |
| Head Bottom Offset Height | 5.00 |
| Tool Style | KGH |
| Cutting Width Minimum | 4.00 |
| Cutting Width Maximum | 4.50 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Shank Height | 20.00 |
| Cutting Width | 4.00 - 4.50 |
