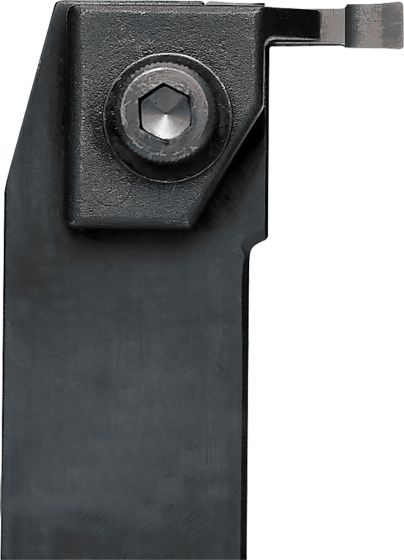

KGHSL2020K-5
SKU
THC04661
Product Overview
KGHS
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 13.00 |
| [CW MAX] Edge Tolerance | 6.50 |
| [B] Shank Width | 20.00 |
| [HF] Cutting Edge Height | 20.00 |
| [LH] Head Length | 25.00 |
| [WF] Cutting Edge Distance | 35.00 |
| [HBH] Head Bottom Offset Height | 5.00 |
| [LF] Functional Length | 125.00 |
| [H] Shank Height | 20.00 |
| [CW] Cutting Width | 5.00 - 6.50 |
External Grooving Toolholder
| Weight | 0.492000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 13.00 |
| Coolant supply property | No |
| Grooving | External Grooving |
| Head Bottom Offset Height | 5.00 |
| Tool Style | KGHS |
| Cutting Width Minimum | 5.00 |
| Cutting Width Maximum | 6.50 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Shank Height | 20.00 |
| Cutting Width | 5.00 - 6.50 |
Currently Holders Selection Are Not Available Please Visit Back Later.
