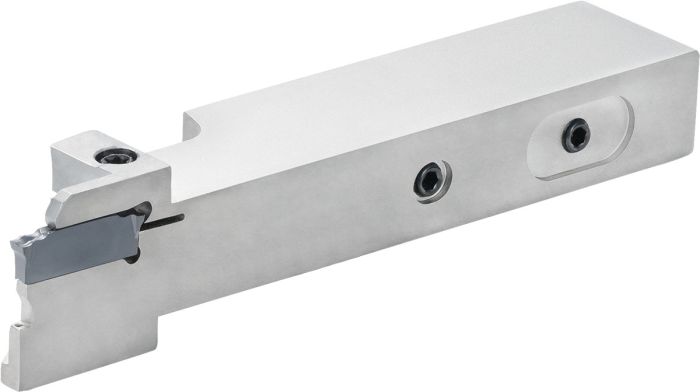

KGZR1218JX-2.4JCTM
SKU
THC15398
Product Overview
KGZ-JCTM
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 12.00 |
| [CW MAX] Edge Tolerance | 3 |
| [B] Shank Width | 18.00 |
| [HF] Cutting Edge Height | 12.00 |
| [LH] Head Length | 19.80 |
| [WF] Cutting Edge Distance | 11.00 |
| [CUTDIA] Maximum Cut-Off Diameter | 24.00 |
| [HBH] Head Bottom Offset Height | 8.50 |
| [HBL] Head Bottom Offset Length | 19.60 |
| [MHD] Mounting Hole Distance | 54.00 |
| [MHD2] Mounting Hole Distance Secondary | - |
| [MHD3] Mounting Hole Distance Secondary | 8.40 |
| [LF] Functional Length | 120.00 |
| [H] Shank Height | 12.00 |
| [CW] Cutting Width | 2.40 - 3.00 |
Cut-Off, External Grooving, Small Parts Machining
| Weight | 0.155000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 12.00 |
| Coolant supply property | No |
| Maximum Cut-Off Diameter | 24.00 |
| Grooving | External Grooving, External Grooving/ Turning, Parting off |
| Head Bottom Offset Height | 8.50 |
| Head Bottom Offset Length | 19.60 |
| Mounting Hole Distance | 54.00 |
| Mounting Hole Distance Secondary | - |
| Mounting Hole Distance Secondary | 8.40 |
| Tool Style | KGZ-JCTM |
| Type of Operation | G03 |
| Cutting Width Minimum | 2.40 |
| Cutting Width Maximum | 3.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Shank Height | 12.00 |
| Cutting Width | 2.40 - 3.00 |
