KIGHR6550B-4
SKU
THC04926
Product Overview
KIGH
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 12.00 |
| [CW MAX] Edge Tolerance | 4 |
| [DCON] Connection Diameter | 50.00 |
| [LH] Head Length | 27.00 |
| [WF] Cutting Edge Distance | 37.30 |
| [DMIN] Minimum Bore Diameter | 65.00 |
| [LF] Functional Length | 300.00 |
| [H] Shank Height | 48.00 |
| [CW] Cutting Width | 4.00 |

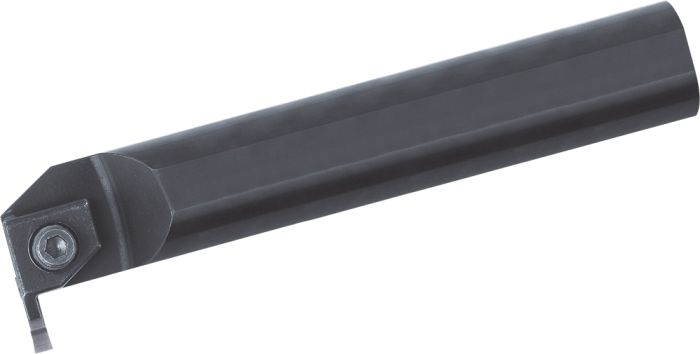

Internal Grooving Toolholder
| Weight | 4.319000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 12.00 |
| Coolant supply property | No |
| Grooving | |
| Tool Style | KIGH |
| Cutting Width Minimum | 4.00 |
| Cutting Width Maximum | 4.00 |
| Insert Mounting Style Code | Top Clamp |
| Brand | Kyocera |
| Shank Height | 48.00 |
| Cutting Width | 4.00 |
