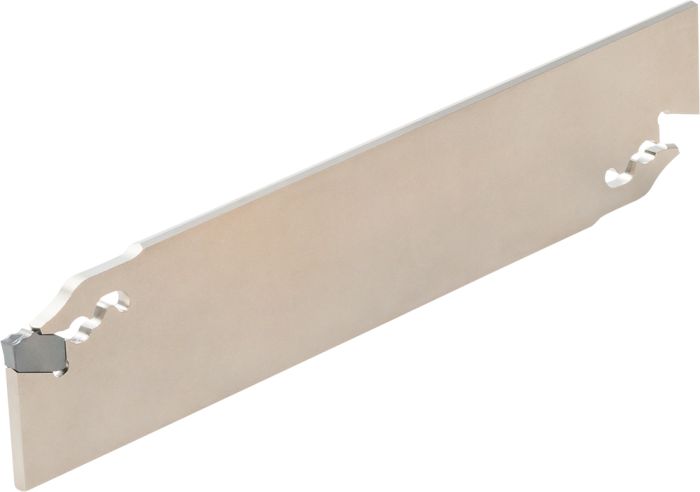

KPKB26-1
SKU
THP06853
Product Overview
KPKB
Face Miling
Price Hidden
In stock
| Specifications | |
|---|---|
| [CW MAX] Edge Tolerance | 1.6 |
| [HF] Cutting Edge Height | 15.70 |
| [A] Insert Seat Width | 1.80 |
| [CUTDIA] Maximum Cut-Off Diameter | 35.00 |
| [LF] Functional Length | 86.00 |
| [H] Shank Height | 19.00 |
| [CW] Cutting Width | 1.60 |
Indexable Grooving Holders
| Weight | 0.073000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Insert Seat Width | 1.80 |
| Coolant supply property | No |
| Maximum Cut-Off Diameter | 35.00 |
| Grooving | Parting off |
| Tool Style | KPKB |
| Cutting Width Minimum | 1.60 |
| Cutting Width Maximum | 1.60 |
| Insert Mounting Style Code | Self-Clamp |
| Brand | Kyocera |
| Shank Height | 19.00 |
| Cutting Width | 1.60 |
| Insert Size | PKM |
Currently Holders Selection Are Not Available Please Visit Back Later.
