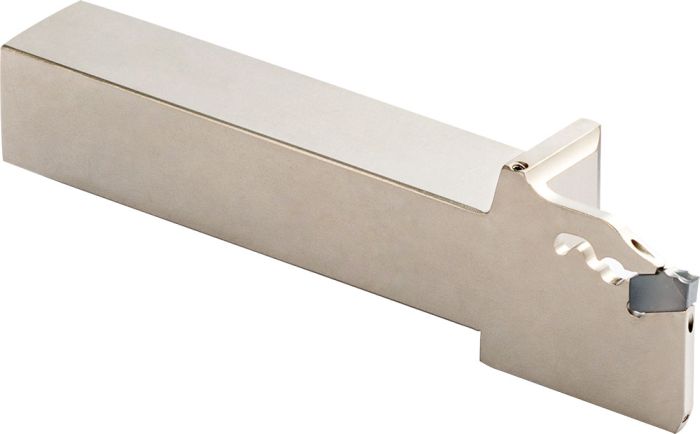

KPKHL2020K-2JCT
SKU
THP06834
Product Overview
KPKH-JCT
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CW MAX] Edge Tolerance | 2.4 |
| [B] Shank Width | 20.00 |
| [HF] Cutting Edge Height | 20.00 |
| [LH] Head Length | 35.10 |
| [WF] Cutting Edge Distance | 19.15 |
| [CUTDIA] Maximum Cut-Off Diameter | 38.00 |
| [HBH] Head Bottom Offset Height | 5.00 |
| [HBL] Head Bottom Offset Length | 35.10 |
| [MHD] Mounting Hole Distance | 89.00 |
| [LF] Functional Length | 125.00 |
| [H] Shank Height | 20.00 |
| [CW] Cutting Width | 2.00 - 2.40 |
Cut-Off
| Weight | 0.383000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Coolant supply property | No |
| Maximum Cut-Off Diameter | 38.00 |
| Grooving | Parting off |
| Head Bottom Offset Height | 5.00 |
| Head Bottom Offset Length | 35.10 |
| Mounting Hole Distance | 89.00 |
| Tool Style | KPKH-JCT |
| Type of Operation | G01 |
| Cutting Width Minimum | 2.00 |
| Cutting Width Maximum | 2.40 |
| Insert Mounting Style Code | Self-Clamp |
| Brand | Kyocera |
| Shank Height | 20.00 |
| Cutting Width | 2.00 - 2.40 |
