KPKHR2525M-5
SKU
THP06862
Product Overview
KPKH
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CW MAX] Edge Tolerance | 5 |
| [HF] Cutting Edge Height | 25.00 |
| [LH] Head Length | 45.90 |
| [WF] Cutting Edge Distance | 22.95 |
| [CUTDIA] Maximum Cut-Off Diameter | 79.00 |
| [HBH] Head Bottom Offset Height | - |
| [HBL] Head Bottom Offset Length | - |
| [LF] Functional Length | 150.00 |
| [H] Shank Height | 25.00 |
| [CW] Cutting Width | 4.80 - 5.00 |

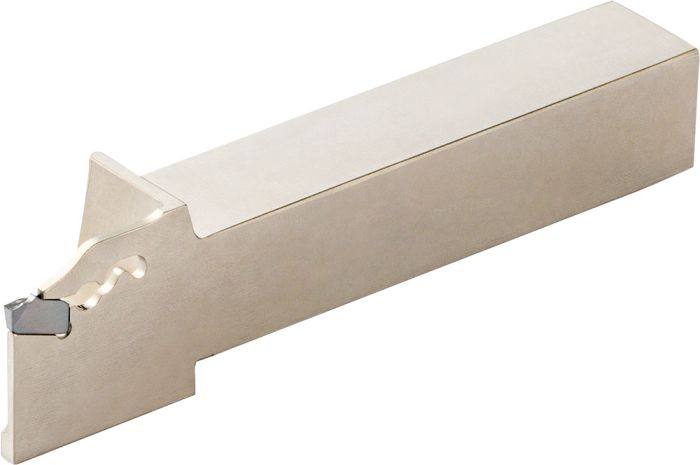

Cut-Off Toolholder
| Weight | 0.602000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Coolant supply property | No |
| Maximum Cut-Off Diameter | 79.00 |
| Grooving | Parting off |
| Head Bottom Offset Height | - |
| Head Bottom Offset Length | - |
| Tool Style | KPKH |
| Cutting Width Minimum | 4.80 |
| Cutting Width Maximum | 5.00 |
| Insert Mounting Style Code | Self-Clamp |
| Brand | Kyocera |
| Shank Height | 25.00 |
| Cutting Width | 4.80 - 5.00 |
