KTKBR32-9S
SKU
THP05247
Product Overview
KTKB
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CW MAX] Edge Tolerance | 9.60 |
| [HF] Cutting Edge Height | 25.00 |
| [CUTDIA] Maximum Cut-Off Diameter | 120.00 |
| [LF] Functional Length | 150.00 |
| [H] Shank Height | 32.00 |
| [CW] Cutting Width | 9.60 |

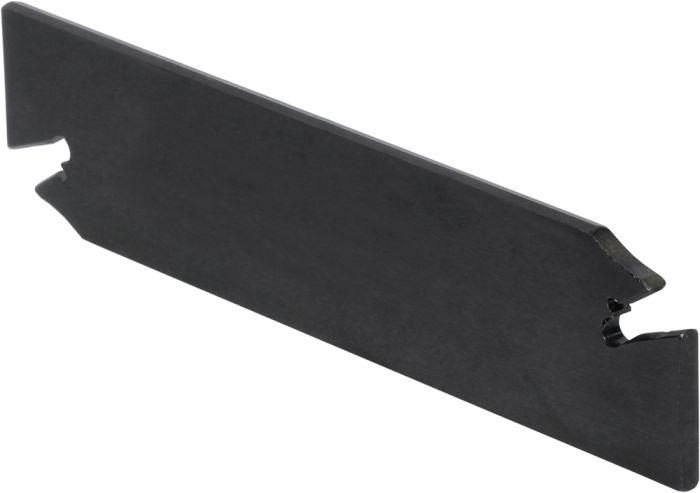

Cut-Off Blade
| Weight | 0.276000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Coolant supply property | No |
| Maximum Cut-Off Diameter | 120.00 |
| Grooving | Parting off |
| Tool Style | KTKB |
| Cutting Width Minimum | 9.60 |
| Cutting Width Maximum | 9.60 |
| Insert Mounting Style Code | Self-Clamp |
| Brand | Kyocera |
| Shank Height | 32.00 |
| Cutting Width | 9.60 |
