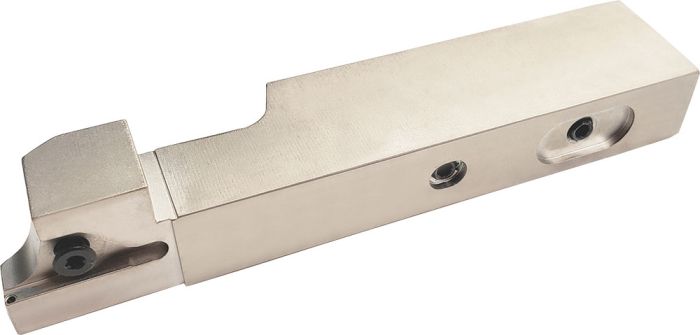

KTKFR1218JX-12JCTM
SKU
THP06843
Product Overview
KTKF-JCTM
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 07.50 |
| [CW MAX] Edge Tolerance | 2 |
| [B] Shank Width | 18.00 |
| [HF] Cutting Edge Height | 12.00 |
| [LH] Head Length | 20.00 |
| [WF] Cutting Edge Distance | 12.00 |
| [CUTDIA] Maximum Cut-Off Diameter | 05.00 - 12.00 |
| [HBL] Head Bottom Offset Length | 20.00 |
| [MHD] Mounting Hole Distance | 54.00 |
| [MHD2] Mounting Hole Distance Secondary | - |
| [LF] Functional Length | 120.00 |
| [H] Shank Height | 12.00 |
| [CW] Cutting Width | 0.50 - 2.00 |
Coolant-Through External Cut-Off Toolholder
| Weight | 0.173000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 07.50 |
| Coolant supply property | No |
| Maximum Cut-Off Diameter | 05.00 - 12.00 |
| Grooving | Parting off |
| Head Bottom Offset Length | 20.00 |
| Mounting Hole Distance | 54.00 |
| Mounting Hole Distance Secondary | - |
| Overall Height | 19.00 |
| Tool Style | KTKF-JCTM |
| Cutting Width Minimum | 0.50 |
| Cutting Width Maximum | 2.00 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Shank Height | 12.00 |
| Cutting Width | 0.50 - 2.00 |
