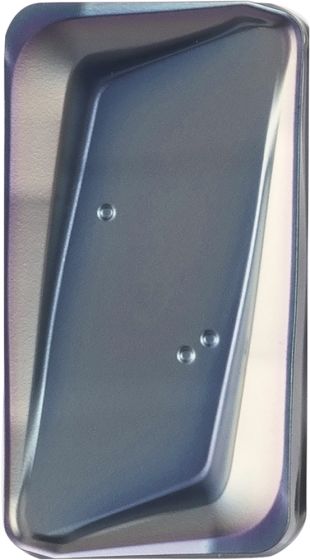

LOGU221616ER-GM PR1525
SKU
TLB40002
Product Overview
LOGU
Steel
Regular Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 1.60 |
| [S] Insert Thickness | 16.6 |
| [BS] Wiper Edge | 6.30 |
| [INSL] Insert length | 22.80 |
| [W1] Insert Width | 12.5 |
| [D1] Hole Diameter | 6.80 |
Milling Insert Carbide Coated
| Weight | 0.051000 |
|---|---|
| Application | Milling |
| Coating | PVD |
| Primary Workpiece Material | Steel |
| Grade Manufacturers Designation | PR1525 |
| Tool Material | Regular Grain Carbide |
| Tool Type | Indexable Inserts |
| Wiper Edge | 6.30 |
| Coolant supply property | No |
| Application Category | Facing, Helical Milling, Shouldering, Slotting, Pocketing, Plunging, Ramping, High Feed |
| Cutting Range | Medium-Roughing |
| Number of Cutting Edges | 4 |
| Insert Side Count | Positive |
| Grooving | Parting off |
| Tool Style | LOGU |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT NANO |
| Cutting Edge Style | Honed Edge / General Purpose |
| Insert length | 22.80 |
| Insert Size | LO-2216 |
| Insert Width | 12.5 |
| Chip Breaker Manufacturers Designation | ER-GM |
