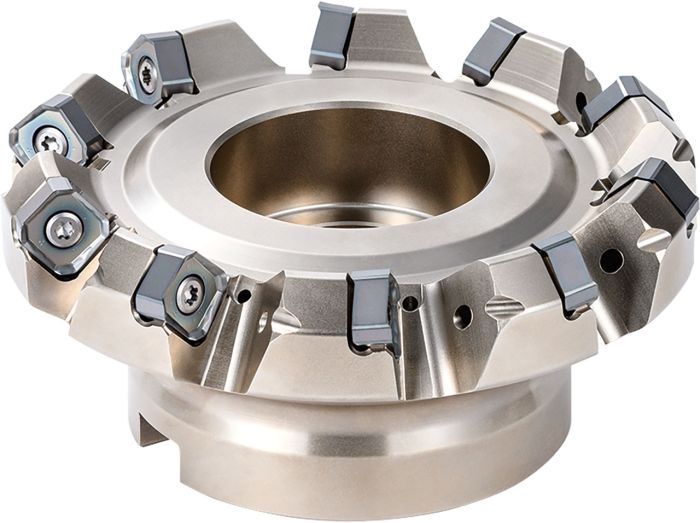

MB45-040R-14T4C-22M
SKU
THN08922
Product Overview
MB45
C Chamfering
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [APMX] Head Length | 6.00 |
| [CBDP] Connection Bore Depth | 22.00 |
| [DC] Cutting Diameter | 40.00 |
| [DCB] Connection Bore Diameter | 16.00 |
| [DCCB1] Connection Counterbore Diameter 1 | 13.50 |
| [DCCB2] Connection Counterbore Diameter 2 | 9.00 |
| [DCCB3] Connection Counterbore Diameter 3 | - |
| [DCCB4] Connection Counterbore Diameter 4 | - |
| [DCFMS] Contact Surface Diameter Machine Side | 38.00 |
| [DCX] Cutting Diameter Maximum | 53.00 |
| [KDP] Keyway Depth | 5.60 |
| [KWW] Keyway With | 8.40 |
45º Lead Angle Face Mill
| Weight | 0.406000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Arbor Type |
| Coolant supply property | Yes |
| Connection Bore Diameter | 16.00 |
| Connection Counterbore Diameter 1 | 13.50 |
| Connection Counterbore Diameter 3 | - |
| Connection Counterbore Diameter 4 | - |
| Contact Surface Diameter Machine Side | 38.00 |
| Cutting Diameter Maximum | 53.00 |
| Cutting Item Count | 4 |
| Application Category | Facing, Chamfering |
| Rake Angle Axial (Degree) | +13 |
| Grooving | Parting off |
| Tool Style | MB45 |
| Rake Angle Radial (Degree) | -12 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 45 |
| Brand | Kyocera |
| Families | Face Mills |
| Insert Size | SN-1406 |
