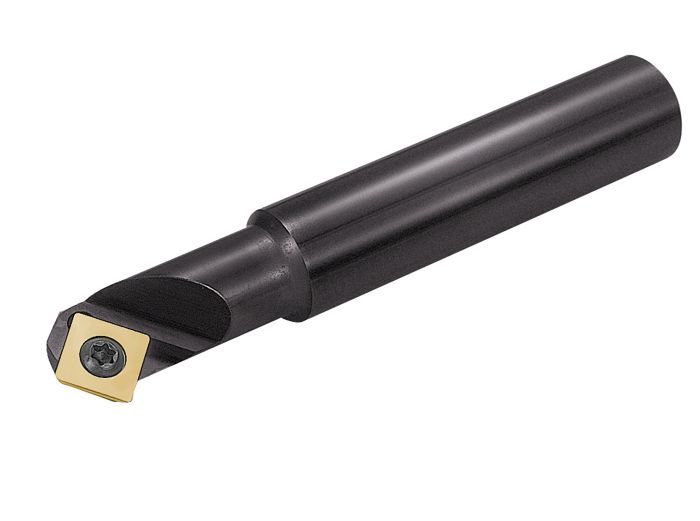

MCSE115-W
SKU
THC65855
Product Overview
MCSE
Chamfer Milling
Chamfering & Bottom Deburring
Counter Sinking
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DCON] Connection Diameter | 20.00 |
| [APMX] Head Length | 8.60 |
| [DC] Cutting Diameter | 31.00 |
| [DC1] Cutting Diameter 2 | 30.00 |
45º Lead Angle Chamfer End Mill
| Weight | 0.195000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Cylindrical |
| Coolant supply property | No |
| Cutting Diameter 2 | 30.00 |
| Cutting Diameter 3 | 15.00 |
| (DN) Neck Diameter | 18.00 |
| Cutting Item Count | 1 |
| Application Category | Chamfering, Back Chamfering, Countersinking, V-Shape Slotting |
| Rake Angle Axial (Degree) | 0 |
| Grooving | Parting off |
| Tool Style | MCSE |
| Rake Angle Radial (Degree) | +5_0 |

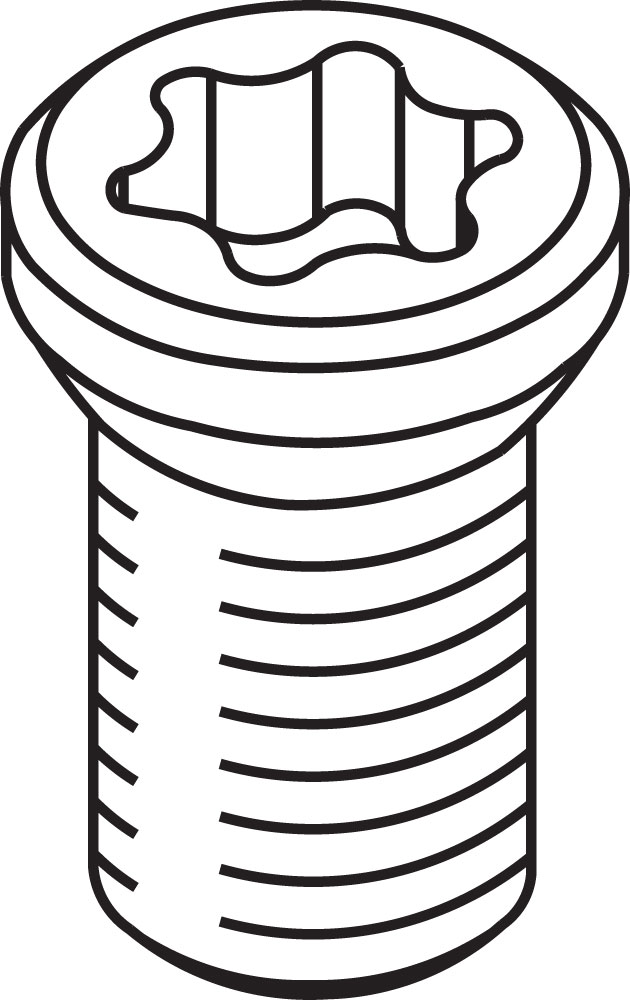

| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 45 |
| Brand | Kyocera |
| Families | Profile Mills |
| Insert Size | SE-1203 |
Currently Holders Selection Are Not Available Please Visit Back Later.
