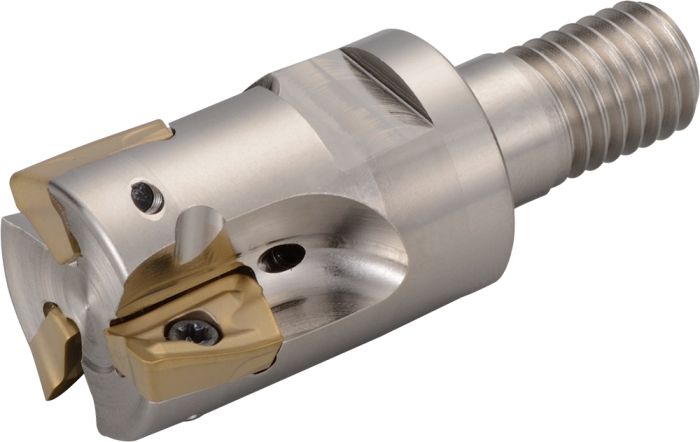

MEC16-M08-11T-2T
SKU
THN03504
Product Overview
MEC
Helical Interpolation
Ramp Milling
Plunging
Plunging & Recessing
Slot Miling
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DCON] Connection Diameter | 8.50 |
| [OAL] Overall Length | 42_00 |
| [APMX] Head Length | 10.00 |
| [DC] Cutting Diameter | 16.00 |
| [DCFMS] Contact Surface Diameter Machine Side | 14.70 |
| [H] Shank Height | 12.00 |
90º Lead Angle End Mill
| Weight | 0.064000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Screw Type |
| Coolant supply property | Yes |
| Contact Surface Diameter Machine Side | 14.70 |
| Cutting Item Count | 2 |
| Application Category | Facing, Helical Milling, Shouldering, Slotting, Plunging, Ramping |
| Rake Angle Axial (Degree) | +18 |
| Grooving | Parting off |
| Tool Style | MEC |
| Rake Angle Radial (Degree) | -14 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 90 |
| Brand | Kyocera |
| Families | Shoulder Mills |
| Shank Height | 12.00 |
| Insert Size | BD-11T3 |
