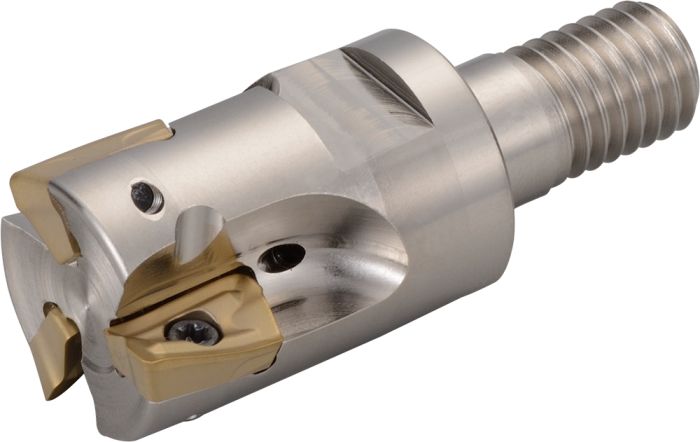

MEC25-M12-17-2T
SKU
THN03518
Product Overview
MEC
Helical Interpolation
Ramp Milling
Plunging
Plunging & Recessing
Slot Miling
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DCON] Connection Diameter | 12.50 |
| [OAL] Overall Length | 56_00 |
| [APMX] Head Length | 15.70 |
| [DC] Cutting Diameter | 25.00 |
| [DCFMS] Contact Surface Diameter Machine Side | 23.00 |
| [H] Shank Height | 19.00 |
90º Lead Angle End Mill
| Weight | 0.156000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Screw Type |
| Coolant supply property | Yes |
| Contact Surface Diameter Machine Side | 23.00 |
| Cutting Item Count | 2 |
| Application Category | Facing, Helical Milling, Shouldering, Slotting, Plunging, Ramping |
| Rake Angle Axial (Degree) | +16 |
| Grooving | Parting off |
| Tool Style | MEC |
| Rake Angle Radial (Degree) | -11 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 90 |
| Brand | Kyocera |
| Families | Shoulder Mills |
| Shank Height | 19.00 |
| Insert Size | BD-1704 |
Currently Holders Selection Are Not Available Please Visit Back Later.
