MECH040R-11-4-4T-M
SKU
THN03960
Product Overview
MECH
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [APMX] Head Length | 37.00 |
| [CBDP] Connection Bore Depth | 19.00 |
| [DC] Cutting Diameter | 40.00 |
| [DCB] Connection Bore Diameter | 16.00 |
| [DCCB1] Connection Counterbore Diameter 1 | 15.00 |
| [DCCB2] Connection Counterbore Diameter 2 | 9.00 |
| [KDP] Keyway Depth | 5.60 |
| [KWW] Keyway With | 8.40 |
| [NOF] Flute count | 4 |

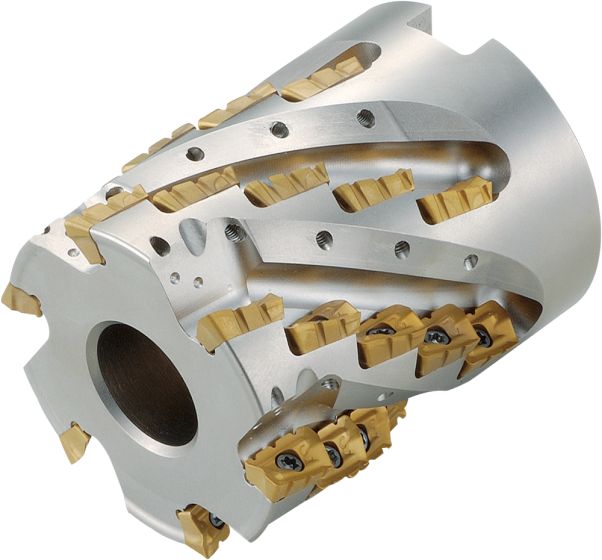

Helical Shell Mill
| Weight | 0.288000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Shell Mill |
| Coolant supply property | No |
| Connection Bore Diameter | 16.00 |
| Connection Counterbore Diameter 1 | 15.00 |
| Flute count | 4 |
| Cutting Item Count | 16 |
| Number of Stages | 4 |
| Application Category | Facing, Shouldering |
| Rake Angle Axial (Degree) | +23 |
| Grooving | Parting off |
| Tool Style | MECH |
| Rake Angle Radial (Degree) | -8 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 90 |
| Brand | Kyocera |
| Families | Shoulder Mills |
| Insert Size | BD-1103 |
Currently Holders Selection Are Not Available Please Visit Back Later.
