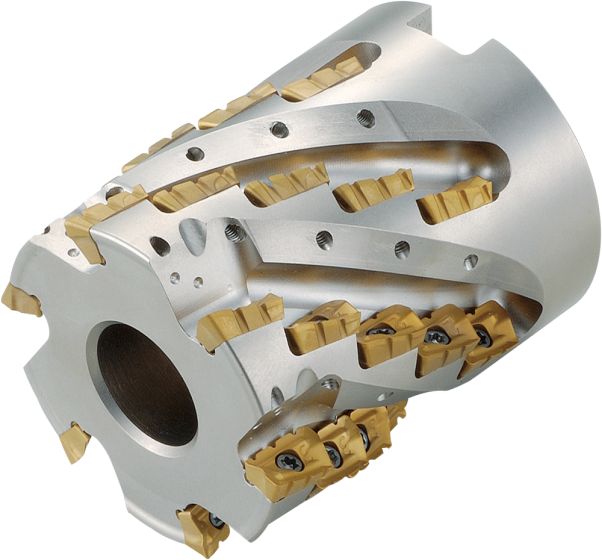

MECH080R-17-4-6T-M
SKU
THN03954
Product Overview
MECH
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [APMX] Head Length | 59.00 |
| [CBDP] Connection Bore Depth | 28.00 |
| [DC] Cutting Diameter | 80.00 |
| [DCB] Connection Bore Diameter | 32.00 |
| [DCCB1] Connection Counterbore Diameter 1 | 26.00 |
| [DCCB2] Connection Counterbore Diameter 2 | 18.00 |
| [KDP] Keyway Depth | 8.00 |
| [KWW] Keyway With | 14.40 |
| [NOF] Flute count | 6 |
Helical Shell Mill
| Weight | 2.116000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Shell Mill |
| Coolant supply property | No |
| Connection Bore Diameter | 32.00 |
| Connection Counterbore Diameter 1 | 26.00 |
| Flute count | 6 |
| Cutting Item Count | 24 |
| Number of Stages | 4 |
| Application Category | Facing, Shouldering |
| Rake Angle Axial (Degree) | +19 |
| Grooving | Parting off |
| Tool Style | MECH |
| Rake Angle Radial (Degree) | -7 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 90 |
| Brand | Kyocera |
| Families | Shoulder Mills |
| Insert Size | BD-1704 |
