MECHT32-S32-11-5-4T
SKU
THN08503
Product Overview
MECH-T
Slot Radius Milling
Deep Shoulder Milling
Slot Miling
Radius Miling
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.

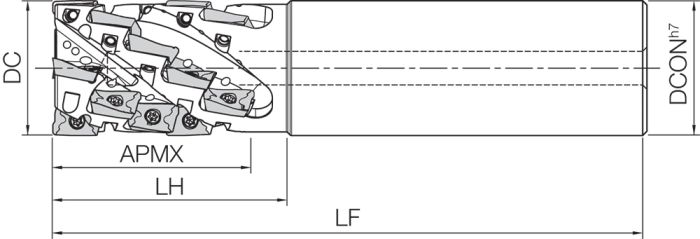

| Specifications | |
|---|---|
| [DCON] Connection Diameter | 32.00 |
| [APMX] Head Length | 5.00 |
| [CBDP] Connection Bore Depth | - |
| [DC] Cutting Diameter | 32.00 |
| [DCCB1] Connection Counterbore Diameter 1 | - |
| [DCCB2] Connection Counterbore Diameter 2 | - |
| [KDP] Keyway Depth | - |
| [NOF] Flute count | 4 |
Helical End Mill
| Weight | 0.706000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Cylindrical |
| Coolant supply property | Yes |
| Connection Counterbore Diameter 1 | - |
| Flute count | 4 |
| Cutting Item Count | 20 |
| Number of Stages | 5 |
| Application Category | Facing, Shouldering, Slotting |
| Rake Angle Axial (Degree) | +23 |
| Grooving | Parting off |
| Tool Style | MECH-T |
| Rake Angle Radial (Degree) | -9 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 90 |
| Brand | Kyocera |
| Families | Shoulder Mills |
| Insert Size | BD-11T3 |
