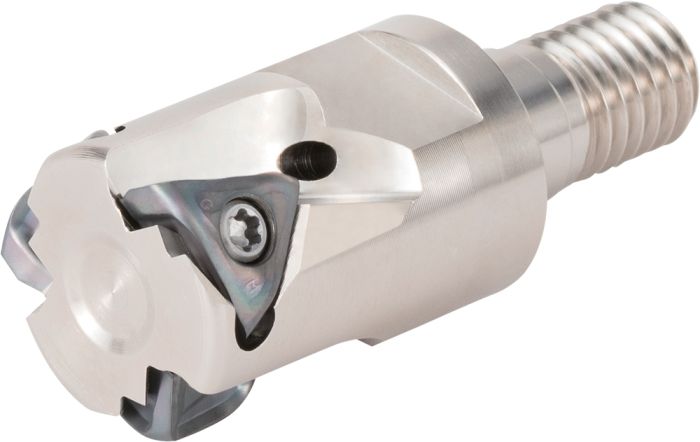

MEV32-M16-06-4T
SKU
THN08499
Product Overview
MEV
Helical Interpolation
Ramp Milling
Plunging
Plunging & Recessing
Slot Miling
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DCON] Connection Diameter | 17.00 |
| [OAL] Overall Length | 62_00 |
| [APMX] Head Length | 6.00 |
| [DC] Cutting Diameter | 32.00 |
| [DCFMS] Contact Surface Diameter Machine Side | 30.00 |
| [H] Shank Height | 24.00 |
90º Lead Angle End Mill
| Weight | 0.206000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Screw Type |
| Coolant supply property | Yes |
| Contact Surface Diameter Machine Side | 30.00 |
| Cutting Item Count | 4 |
| Application Category | Facing, Helical Milling, Shouldering, Slotting, Pocketing, Plunging, Ramping |
| Rake Angle Axial (Degree) | +17 |
| Grooving | Parting off |
| Tool Style | MEV |
| Rake Angle Radial (Degree) | -36 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 90 |
| Brand | Kyocera |
| Families | Shoulder Mills |
| Shank Height | 24.00 |
| Insert Size | TO-0605 |
