MEWH063R-15-3-3T-M
SKU
THN04253
Product Overview
MEWH
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [APMX] Head Length | 41.00 |
| [CBDP] Connection Bore Depth | 24.00 |
| [DC] Cutting Diameter | 63.00 |
| [DCB] Connection Bore Diameter | 27.00 |
| [DCCB1] Connection Counterbore Diameter 1 | 20.00 |
| [DCCB2] Connection Counterbore Diameter 2 | 13.00 |
| [KDP] Keyway Depth | 7.00 |
| [KWW] Keyway With | 12.40 |
| [NOF] Flute count | 3 |

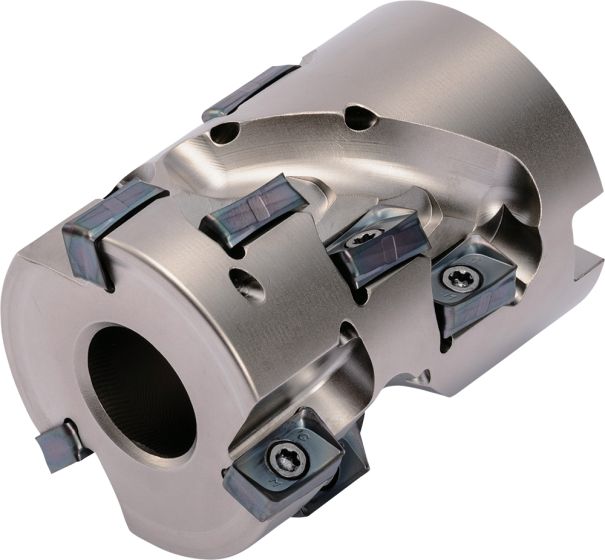

90º Lead Angle Helical Face Mill
| Weight | 0.991000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Shell Mill |
| Coolant supply property | No |
| Connection Bore Diameter | 27.00 |
| Connection Counterbore Diameter 1 | 20.00 |
| Flute count | 3 |
| Cutting Item Count | 9 |
| Number of Stages | 3 |
| Application Category | Facing, Shouldering |
| Rake Angle Axial (Degree) | +13 |
| Grooving | Parting off |
| Tool Style | MEWH |
| Rake Angle Radial (Degree) | -20 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 90 |
| Brand | Kyocera |
| Families | Shoulder Mills |
| Insert Size | LO-1505 |
Currently Holders Selection Are Not Available Please Visit Back Later.
