MEY32-S32
SKU
THN02615
Product Overview
MEY
Helical Interpolation
Ramp Milling
Plunging
Plunging & Recessing
Slot Miling
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DCON] Connection Diameter | 32.00 |
| [APMX] Head Length | 36.00 |
| [DC] Cutting Diameter | 32.00 |
| [NOF] Flute count | 2 |

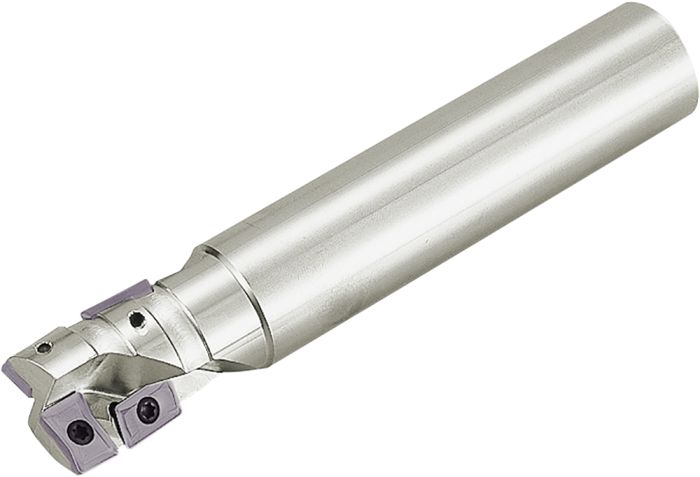

Multi-Function End Mill
| Weight | 0.847000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Cylindrical |
| Coolant supply property | No |
| Flute count | 2 |
| Cutting Item Count | 4 |
| Application Category | Facing, Helical Milling, Shouldering, Slotting, Pocketing, Plunging, Ramping |
| Rake Angle Axial (Degree) | +13 |
| Grooving | Parting off |
| Tool Style | MEY |
| Rake Angle Radial (Degree) | -9 |

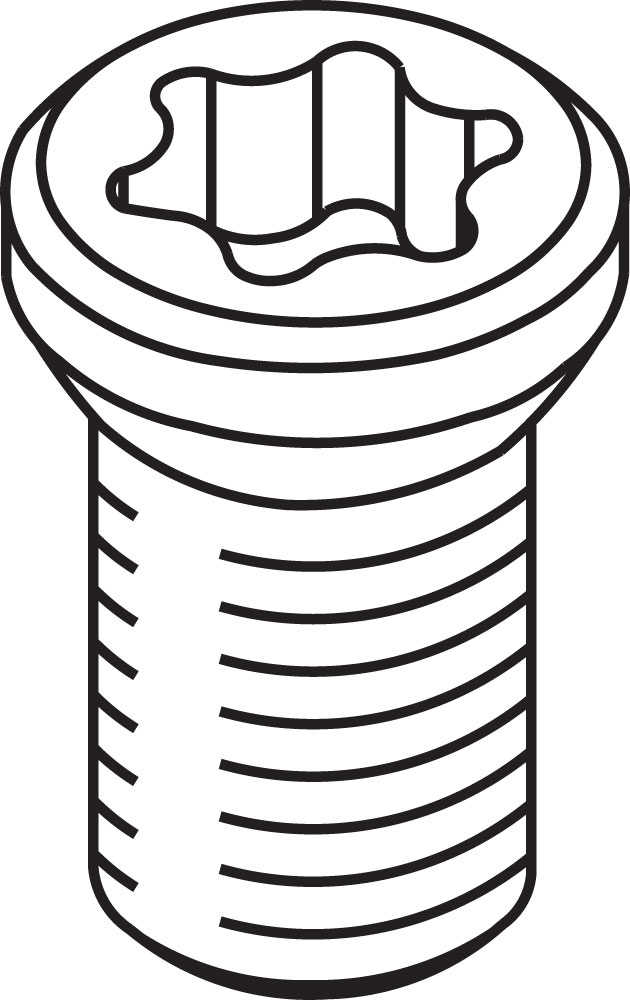

| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 90 |
| Brand | Kyocera |
| Families | Drill Mills |

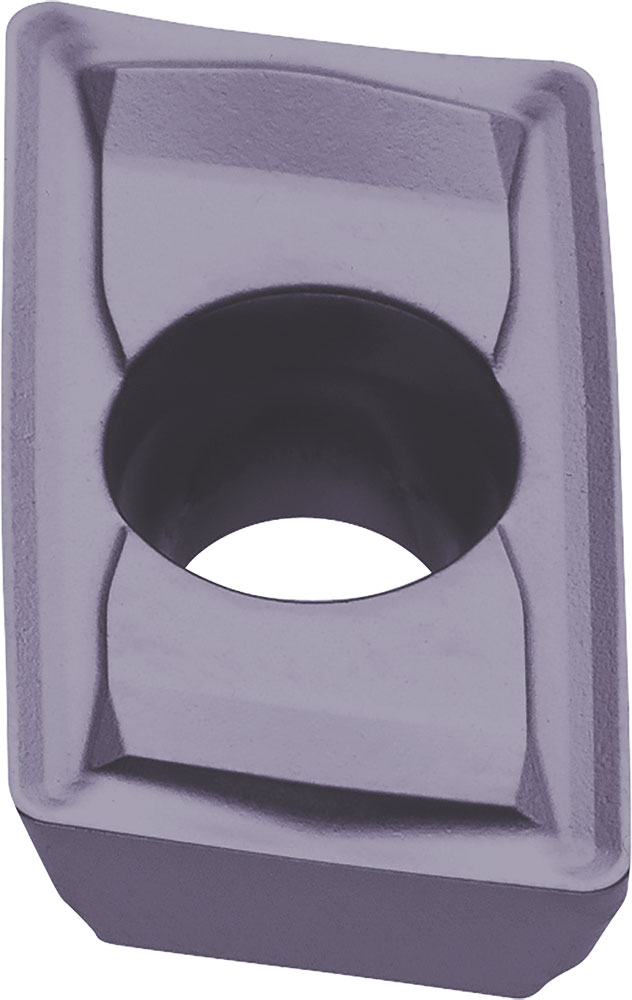

| Insert Size | GO-08T2, JO-08T2 |
