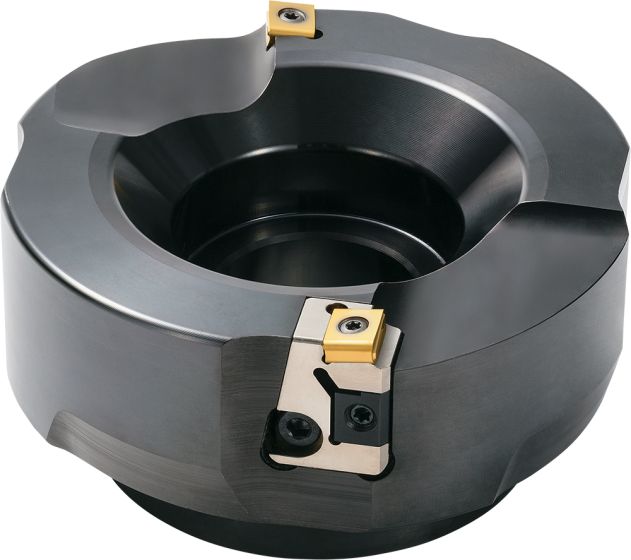

MFF125R-SF
SKU
THN08540
Product Overview
MFF
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [APMX] Head Length | 0.30 |
| [CBDP] Connection Bore Depth | 38.00 |
| [DC] Cutting Diameter | 125.00 |
| [DCB] Connection Bore Diameter | 38.10 |
| [DCCB1] Connection Counterbore Diameter 1 | 58.00 |
| [DCCB2] Connection Counterbore Diameter 2 | - |
| [DCCB3] Connection Counterbore Diameter 3 | - |
| [DCCB4] Connection Counterbore Diameter 4 | - |
| [DCFMS] Contact Surface Diameter Machine Side | 87.00 |
| [DCX] Cutting Diameter Maximum | 112.30 |
| [KDP] Keyway Depth | 10.00 |
| [KWW] Keyway With | 15.90 |
90º Lead Angle Face Mill
| Weight | 3.665000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Arbor Type |
| Coolant supply property | No |
| Connection Bore Diameter | 38.10 |
| Connection Counterbore Diameter 1 | 58.00 |
| Connection Counterbore Diameter 3 | - |
| Connection Counterbore Diameter 4 | - |
| Contact Surface Diameter Machine Side | 87.00 |
| Cutting Diameter Maximum | 112.30 |
| Cutting Item Count | 2 |
| Application Category | Finish Milling |
| Rake Angle Axial (Degree) | -8 |
| Grooving | Parting off |
| Tool Style | MFF |
| Rake Angle Radial (Degree) | -20 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 90 |
| Brand | Kyocera |
| Families | Face Mills |
| Insert Size | LN-1209 |
