MFF200R-M-SF
SKU
THN08549
Product Overview
MFF
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [APMX] Head Length | 0.30 |
| [CBDP] Connection Bore Depth | 40.00 |
| [DC] Cutting Diameter | 200.00 |
| [DCB] Connection Bore Diameter | 60.00 |
| [DCCB1] Connection Counterbore Diameter 1 | 110.00 |
| [DCCB2] Connection Counterbore Diameter 2 | 101.60 |
| [DCCB3] Connection Counterbore Diameter 3 | 26.00 |
| [DCCB4] Connection Counterbore Diameter 4 | 18.00 |
| [DCFMS] Contact Surface Diameter Machine Side | 142.00 |
| [DCX] Cutting Diameter Maximum | 187.30 |
| [KDP] Keyway Depth | 14.00 |
| [KWW] Keyway With | 25.70 |

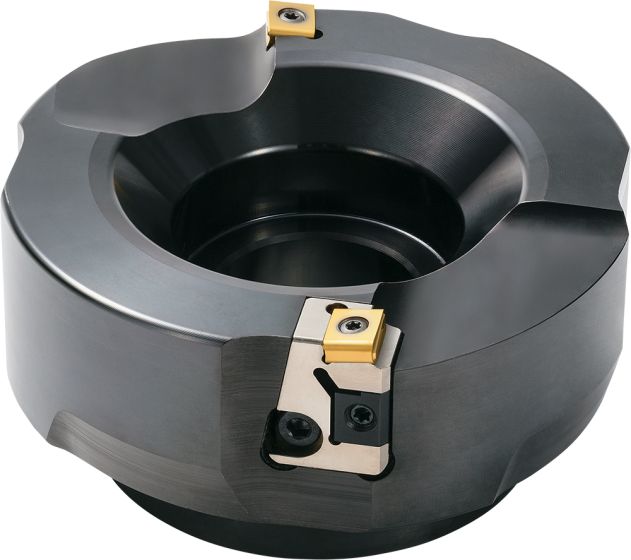

90º Lead Angle Face Mill
| Weight | 7.924000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Arbor Type |
| Coolant supply property | No |
| Connection Bore Diameter | 60.00 |
| Connection Counterbore Diameter 1 | 110.00 |
| Connection Counterbore Diameter 3 | 26.00 |
| Connection Counterbore Diameter 4 | 18.00 |
| Contact Surface Diameter Machine Side | 142.00 |
| Cutting Diameter Maximum | 187.30 |
| Cutting Item Count | 2 |
| Application Category | Finish Milling |
| Rake Angle Axial (Degree) | -8 |
| Grooving | Parting off |
| Tool Style | MFF |
| Rake Angle Radial (Degree) | -20 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 90 |
| Brand | Kyocera |
| Families | Face Mills |
| Insert Size | LN-1209 |
