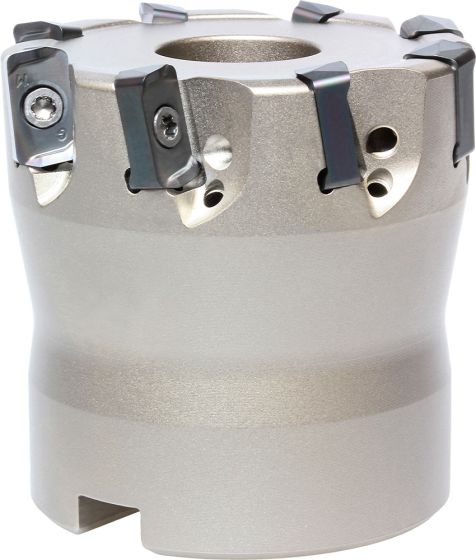

MFH040R-03-5T-M
SKU
THN08326
Product Overview
MFH
Helical Interpolation
Ramp Milling
Plunging
Plunging & Recessing
Slot Miling
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [OAL] Overall Length | 9_00 |
| [APMX] Head Length | 1.00 |
| [CBDP] Connection Bore Depth | 19.00 |
| [DC] Cutting Diameter | 40.00 |
| [DCB] Connection Bore Diameter | 16.00 |
| [DCFMS] Contact Surface Diameter Machine Side | 38.00 |
| [KDP] Keyway Depth | 5.60 |
| [KWW] Keyway With | 8.40 |
10º Lead Angle High Feed Face Mill
| Weight | 0.201000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Arbor Type |
| Coolant supply property | Yes |
| Connection Bore Diameter | 16.00 |
| Contact Surface Diameter Machine Side | 38.00 |
| Cutting Item Count | 5 |
| Application Category | Facing, Helical Milling, Shouldering, Slotting, Plunging, Ramping |
| Rake Angle Axial (Degree) | -10 |
| Grooving | Parting off |
| Tool Style | MFH |
| Rake Angle Radial (Degree) | -15 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | -10 |
| Brand | Kyocera |
| Families | High Feed Mills |
| Insert Size | LO-0303 |
