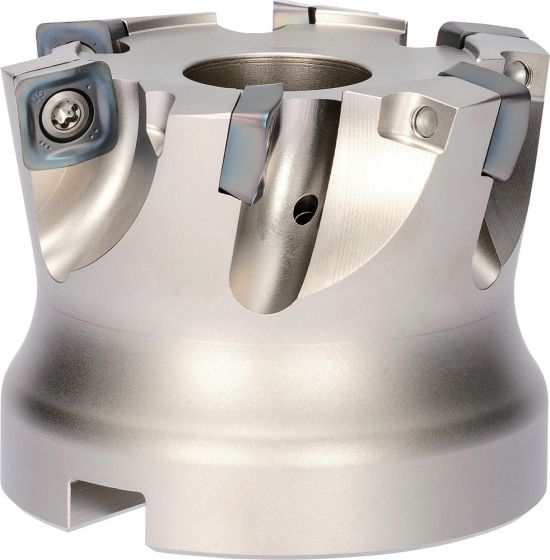

MFH050R-14-4T-M
SKU
THN08330
Product Overview
MFH
Helical Interpolation
Ramp Milling
Plunging
Plunging & Recessing
Slot Miling
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [OAL] Overall Length | 11_00 |
| [APMX] Head Length | 1.00 |
| [CBDP] Connection Bore Depth | 21.00 |
| [DC] Cutting Diameter | 50.00 |
| [DCB] Connection Bore Diameter | 22.00 |
| [DCFMS] Contact Surface Diameter Machine Side | 47.00 |
| [KDP] Keyway Depth | 6.30 |
| [KWW] Keyway With | 10.40 |
10º Lead Angle High Feed Face Mill
| Weight | 0.421000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Arbor Type |
| Coolant supply property | Yes |
| Connection Bore Diameter | 22.00 |
| Contact Surface Diameter Machine Side | 47.00 |
| Cutting Item Count | 4 |
| Application Category | Facing, Helical Milling, Shouldering, Slotting, Plunging, Ramping |
| Rake Angle Axial (Degree) | +10 |
| Grooving | Parting off |
| Tool Style | MFH |
| Rake Angle Radial (Degree) | -10 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | -10 |
| Brand | Kyocera |
| Families | High Feed Mills |
| Insert Size | SO-1405 |
Currently Holders Selection Are Not Available Please Visit Back Later.
