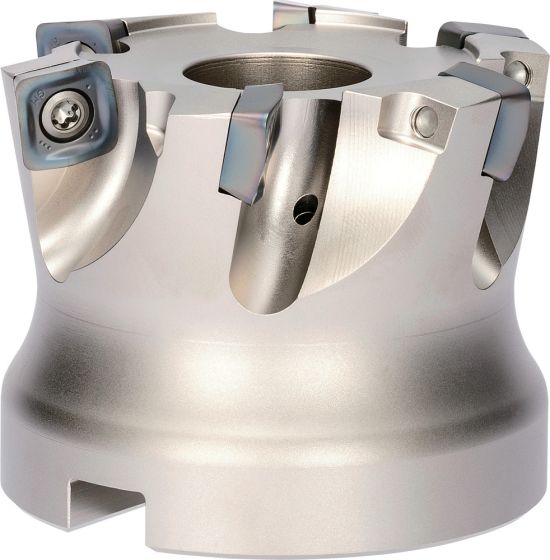

MFH080R-14-6T-M
SKU
THN07695
Product Overview
MFH
Helical Interpolation
Ramp Milling
Plunging
Plunging & Recessing
Slot Miling
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [APMX] Head Length | 2.00 |
| [CBDP] Connection Bore Depth | 24.00 |
| [DC] Cutting Diameter | 80.00 |
| [DCB] Connection Bore Diameter | 27.00 |
| [DCCB1] Connection Counterbore Diameter 1 | 20.00 |
| [DCCB2] Connection Counterbore Diameter 2 | 13.00 |
| [DCFMS] Contact Surface Diameter Machine Side | 76.00 |
| [KDP] Keyway Depth | 7.00 |
| [KWW] Keyway With | 12.40 |
10º Lead Angle High Feed Face Mill
| Weight | 1.601000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Arbor Type |
| Coolant supply property | Yes |
| Connection Bore Diameter | 27.00 |
| Connection Counterbore Diameter 1 | 20.00 |
| Contact Surface Diameter Machine Side | 76.00 |
| Cutting Item Count | 6 |
| Application Category | Facing, Helical Milling, Shouldering, Slotting, Plunging, Ramping |
| Rake Angle Axial (Degree) | +10 |
| Grooving | Parting off |
| Tool Style | MFH |
| Rake Angle Radial (Degree) | -8 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | -10 |
| Brand | Kyocera |
| Families | High Feed Mills |
| Insert Size | SO-1405 |
Currently Holders Selection Are Not Available Please Visit Back Later.
