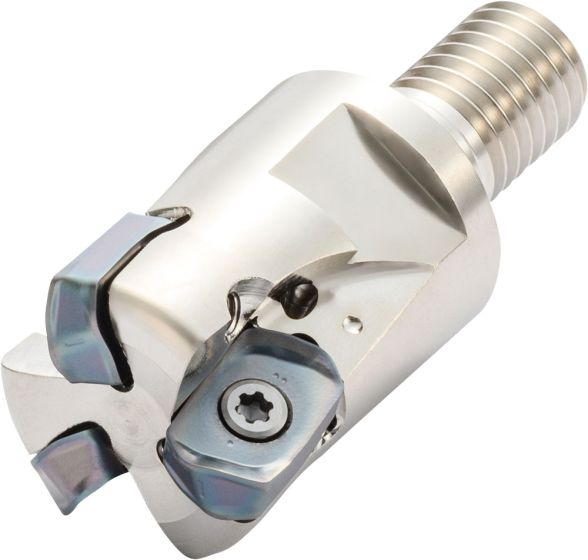

MFH32-M16-04-5T
SKU
THN08649
Product Overview
MFH
Fast Feed Milling
Helical Interpolation
Ramp Milling
Slot Miling
Shoulder Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DCON] Connection Diameter | 17.00 |
| [OAL] Overall Length | 62_00 |
| [APMX] Head Length | 2.50 |
| [DC] Cutting Diameter | 32.00 |
| [DCFMS] Contact Surface Diameter Machine Side | 30.00 |
| [DCX] Cutting Diameter Maximum | 21.00 |
| [H] Shank Height | 24.00 |
90º Lead Angle High Feed End Mill
| Weight | 0.264000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Screw Type |
| Coolant supply property | Yes |
| Contact Surface Diameter Machine Side | 30.00 |
| Cutting Diameter Maximum | 21.00 |
| Cutting Item Count | 5 |
| Application Category | Helical Milling, Shouldering, Slotting, Ramping, High Feed |
| Rake Angle Axial (Degree) | -10 |
| Grooving | Parting off |
| Tool Style | MFH |
| Rake Angle Radial (Degree) | -10 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 10 |
| Brand | Kyocera |
| Families | High Feed Mills |
| Shank Height | 24.00 |
| Insert Size | LO-0404 |
Currently Holders Selection Are Not Available Please Visit Back Later.
