MFH40-M16-10-4T
SKU
THN07557
Product Overview
MFH
Fast Feed Milling
Helical Interpolation
Ramp Milling
Slot Miling
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DCON] Connection Diameter | 22.00 |
| [OAL] Overall Length | 63_00 |
| [APMX] Head Length | 1.50 |
| [DC] Cutting Diameter | 40.00 |
| [DCFMS] Contact Surface Diameter Machine Side | 30.00 |

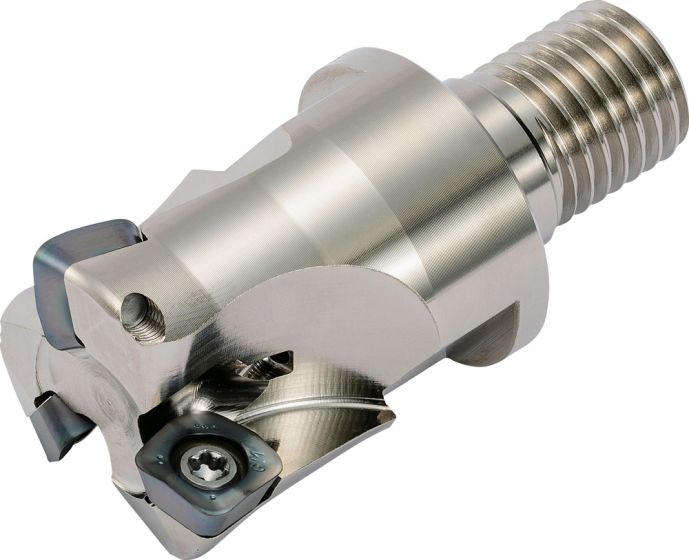

High Feed End Mill
| Weight | 0.273000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Screw Type |
| Coolant supply property | Yes |
| Contact Surface Diameter Machine Side | 30.00 |
| Cutting Item Count | 4 |
| Application Category | Facing, Helical Milling, Shouldering, Slotting, Ramping, High Feed |
| Rake Angle Axial (Degree) | +10 |
| Grooving | Parting off |
| Tool Style | MFH |
| Rake Angle Radial (Degree) | -5 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | -10 |
| Brand | Kyocera |
| Families | High Feed Mills |
| Insert Size | SO-1004 |
