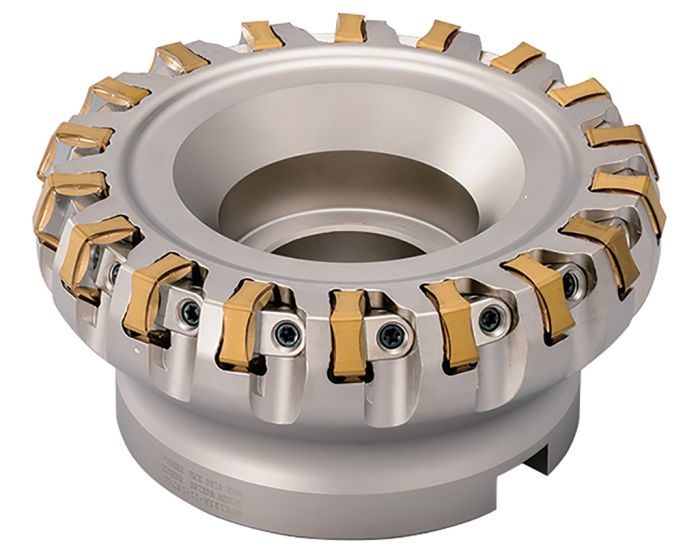

MFK315R-11-44T
SKU
THN08076
Product Overview
MFK
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [APMX] Head Length | 6.00 |
| [CBDP] Connection Bore Depth | 40.00 |
| [DBC1] Pitch Diameter | 101.60 |
| [DC] Cutting Diameter | 315.00 |
| [DCB] Connection Bore Diameter | 47.625 |
| [DCCB1] Connection Counterbore Diameter 1 | 110.00 |
| [DCCB2] Connection Counterbore Diameter 2 | - |
| [DCCB3] Connection Counterbore Diameter 3 | 18.00 |
| [DCCB4] Connection Counterbore Diameter 4 | 26.00 |
| [DCCB5] Connection Counterbore Diameter 5 | 22.00 |
| [DCFMS] Contact Surface Diameter Machine Side | 220.00 |
| [DCX] Cutting Diameter Maximum | 324.00 |
| [KDP] Keyway Depth | 14.00 |
| [KWW] Keyway With | 25.40 |
70º Lead Angle Face Mill
| Weight | 0.511000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Arbor Type |
| Coolant supply property | Yes |
| Pitch Diameter | 101.60 |
| (DBC2) Diameter | 177.80 |
| Connection Bore Diameter | 47.625 |
| Connection Counterbore Diameter 1 | 110.00 |
| Connection Counterbore Diameter 3 | 18.00 |
| Connection Counterbore Diameter 4 | 26.00 |
| Connection Counterbore Diameter 5 | 22.00 |
| Contact Surface Diameter Machine Side | 220.00 |
| Cutting Diameter Maximum | 324.00 |
| Cutting Item Count | 44 |
| Application Category | Facing |
| Rake Angle Axial (Degree) | +15 |
| Grooving | Parting off |
| Tool Style | MFK |
| Rake Angle Radial (Degree) | -5 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 70 |
| Brand | Kyocera |
| Families | Face Mills |
| Insert Size | PN-1106 |
Currently Holders Selection Are Not Available Please Visit Back Later.
