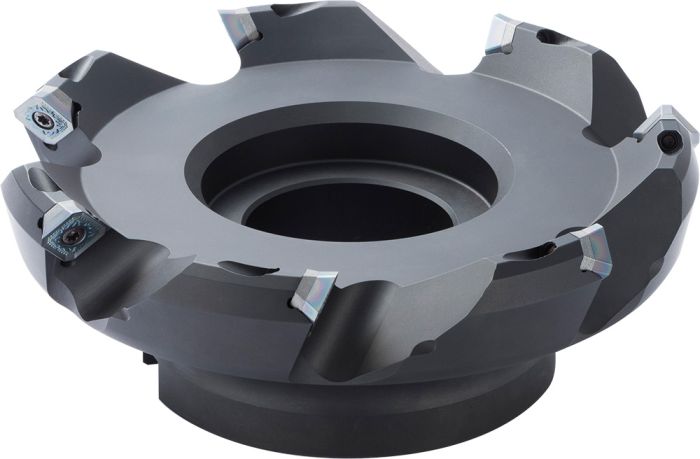

MFSE45250R-10T-M
SKU
THN08602
Product Overview
MFSE
C Chamfering
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DC] Cutting Diameter | 250.00 |
| [DCB] Connection Bore Diameter | 60.00 |
| [DCCB1] Connection Counterbore Diameter 1 | - |
| [DCCB2] Connection Counterbore Diameter 2 | 10.00 |
| [DCCB3] Connection Counterbore Diameter 3 | 18.00 |
| [DCCB4] Connection Counterbore Diameter 4 | 26.00 |
| [DCX] Cutting Diameter Maximum | 250.00 |
| [LU] Usable Length | 14 |
45 Degree Lead Angle Finishing Face Mill
| Weight | 15.791000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Arbor Type |
| Coolant supply property | No |
| Connection Bore Diameter | 60.00 |
| Connection Counterbore Diameter 1 | - |
| Connection Counterbore Diameter 3 | 18.00 |
| Connection Counterbore Diameter 4 | 26.00 |
| Cutting Diameter Maximum | 250.00 |
| Cutting Item Count | 10 |
| Number of Stages | 10 |
| Application Category | Facing, Chamfering |
| Grooving | Parting off |
| Tool Style | MFSE |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 45 |
| Brand | Kyocera |
| Families | Shoulder Mills |
| Usable Length | 14 |
| Insert Size | SE-13T3 |
Currently Holders Selection Are Not Available Please Visit Back Later.
